74HC4518 - Dual synchronous BCD counter

74HC4518 Description

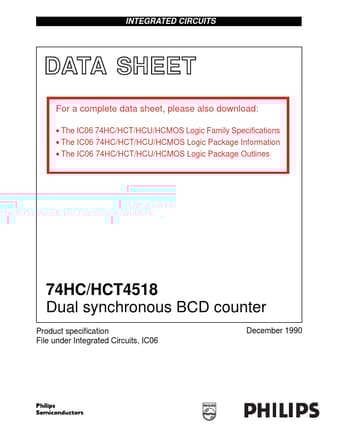

INTEGRATED CIRCUITS DATA SHEET For a complete data sheet, please also download: * The IC06 74HC/HCT/HCU/HCMOS Logic Family Specifications .
The 74HC/HCT4518 are high-speed Si-gate CMOS devices and are pin compatible with the “4518” of the “4000B” series.

74HC4518 Features

* Output capability: standard

74HC4518 Applications

* Multistage synchronous counting
* Multistage asynchronous counting
* Frequency dividers QUICK REFERENCE DATA GND = 0 V; Tamb = 25 °C; tr = tf = 6 ns SYMBOL PARAMETER CONDITIONS TYPICAL HC HCT tPHL/ tPLH tPHL fmax CI CPD propagation delay nCP0, nCP1 to nQn propagation
