74VHC02-Q100

Quad 2-input NOR gate

74VHC02-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 1)

* Specified from -40 °C to +85 °C and from -40 °C to +125 °C

* Balanced propagation delays

* All inputs have a Schmitt-trigger action

* Inputs accept voltages higher than VCC

* In

74VHC02-Q100 General Description

The 74VHC02-Q100; 74VHCT02-Q100 are high-speed Si-gate CMOS devices and are pin compatible with Low-power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard No. 7-A. The 74VHC02-Q100; 74VHCT02-Q100 provide a quad 2-input NOR function. This product has been qualified to the Au.

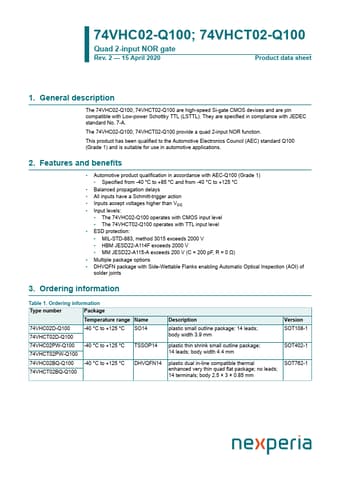

74VHC02-Q100 Datasheet (220.53 KB)
