74VHC244

Octal buffer/line driver

nexperia

74VHC244 Features

* Balanced propagation delays

* All inputs have a Schmitt-trigger action

* Inputs accepts voltages higher than VCC

* Input levels:

* The 74VHC244 operates with CMOS input level

* The 74VHCT244 operates with TTL input level

* ESD protection:

74VHC244 General Description

The 74VHC244; 74VHCT244 are a high-speed Si-gate CMOS devices. The 74VHC244; 74VHCT244 have octal non-inverting buffer/line drivers with 3-state outputs. The 3-state outputs are controlled by the output enable inputs (nOE). A HIGH on nOE causes the outputs to assume a high-impedance OFF-state. 2. F.

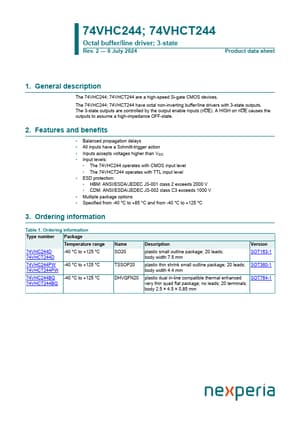

74VHC244 Datasheet (273.08 KB)

74VHC244 Datasheet Preview — Preview of 74VHC244 PDF

Datasheet Details

Part number:

74VHC244

Manufacturer:

nexperia ↗

File Size:

273.08 KB

Description:

Octal buffer/line driver.
