74VHC08 - Quad 2-input AND gate

Product Overview

nexperia

📥 Download Datasheet

74VHC08 Quad 2-input AND gate by nexperia - Datasheet Preview — Datasheet preview – 74VHC08

Datasheet Details

Part number	74VHC08
Manufacturer	nexperia
File Size	226.00 KB
Description	Quad 2-input AND gate
Datasheet	74VHC08 Datasheet

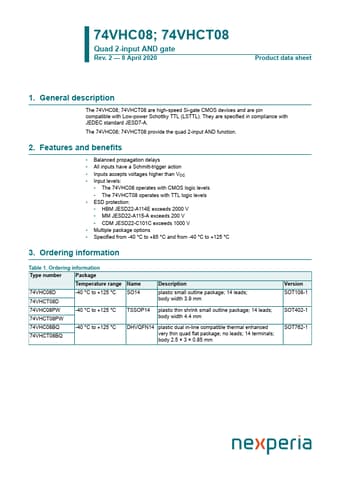

Additional preview pages of the 74VHC08 datasheet.

Product details

Description

The 74VHC08; 74VHCT08 are high-speed Si-gate CMOS devices and are pin compatible with Low-power Schottky TTL (LSTTL).

Features

Balanced propagation delays.
All inputs have a Schmitt-trigger action.
Inputs accepts voltages higher than VCC.
Input levels:.
The 74VHC08 operates with CMOS logic levels.
The 74VHCT08 operates with TTL logic levels.
ESD protection:.
HBM JESD22-A114E exceeds 2000 V.
MM JESD22-A115-A exceeds 200 V.
CDM JESD22-C101C exceeds 1000 V.
Multiple package options.
Specified from -40 °C to +85 °C a.
