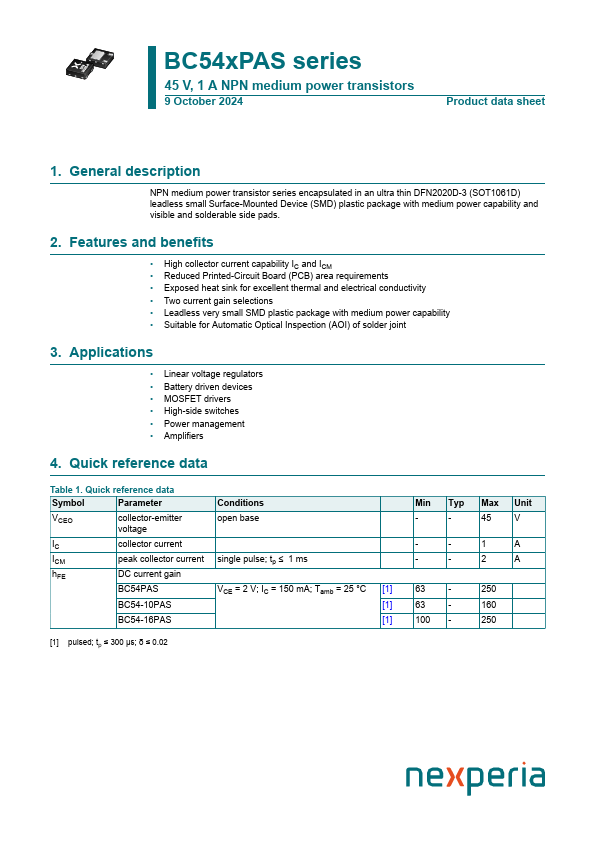

BC54PAS; BC55PAS; BC56PAS 45V/60V/80V, 1A NPN medium power transistors Rev.1 * 11 November 2014 Product data sheet 1.Product profile 1..
NPN medium power transistor series encapsulated in an ultra thin DFN2020D-3 (SOT1061D) leadless small Surface-Mounted Device (SMD) plastic package wit.

BC54PAS Features

* High collector current capability IC and ICM
* Reduced Printed-Circuit Board (PCB)
* Three current gain selections
* Leadless very small SMD plastic area requirements package with medium power capability
* Exposed heat sink for excellent thermal
* Suitable for Automati

BC54PAS Applications

* Linear voltage regulators
* Battery driven devices
* MOSFET drivers
* Low-side switches
* Power management

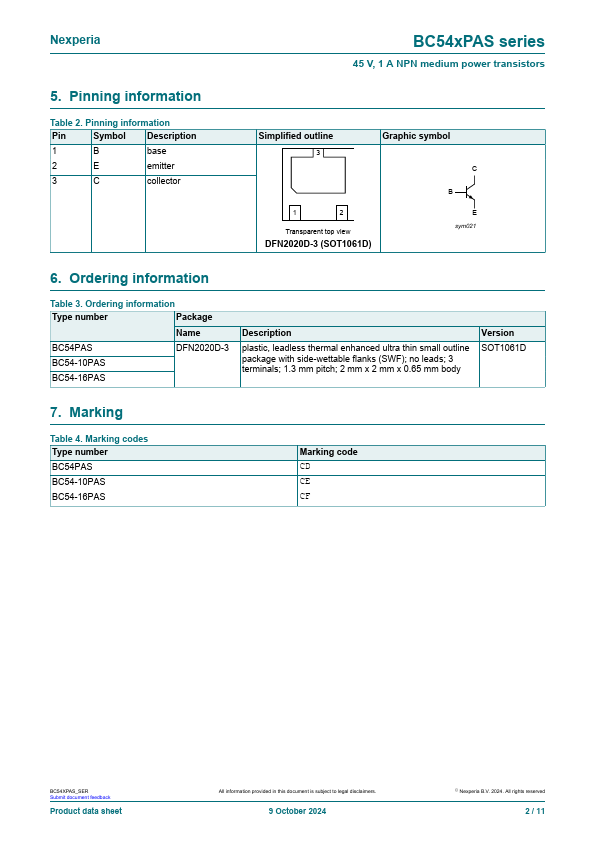

* Amplifiers 1.4 Quick reference data Table 2. Symbol VCEO IC Quick reference data Parameter collector-emitter voltage BC54PAS BC55PAS BC56PAS collector current C
