CBT3253A - Dual 1-of-4 FET multiplexer/demultiplexer

CBT3253A Description

CBT3253A Dual 1-of-4 FET multiplexer/demultiplexer Rev.6 * 25 February 2021 Product data sheet 1.General .
The CBT3253A is a dual single-pole,4-throw bus switch.

CBT3253A Features

* 5 Ω switch connection between two ports
* Direct interface with TTL levels
* Overvoltage tolerant control inputs to 5.5 V
* Minimal propagation delay through the switch
* Latch-up protection exceeds 100 mA per JEDEC standard JESD78 class II level A

📥 Download Datasheet

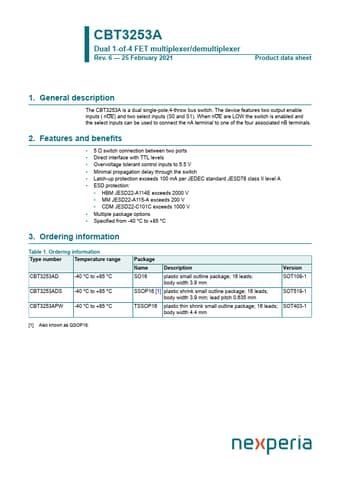

Preview of CBT3253A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CBT3253A
Manufacturer
nexperia ↗
File Size
232.40 KB
Datasheet
CBT3253A-nexperia.pdf
Description
Dual 1-of-4 FET multiplexer/demultiplexer
