CBT3306PW - Dual bus switch

Product Overview

nexperia

📥 Download Datasheet

CBT3306PW Dual bus switch by nexperia - Datasheet Preview — Datasheet preview – CBT3306PW

Datasheet Details

Part number	CBT3306PW
Manufacturer	nexperia
File Size	203.67 KB
Description	Dual bus switch
Datasheet	CBT3306PW Datasheet
Note	This datasheet PDF includes multiple part numbers: CBT3306PW, CBT3306. Please refer to the document for exact specifications by model.

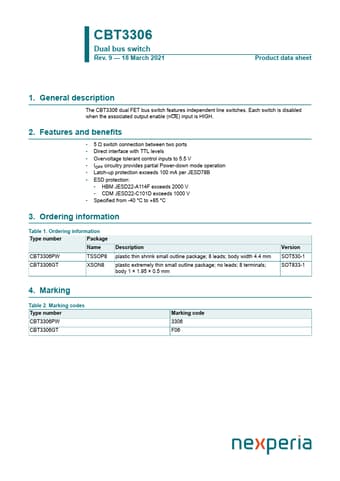

Additional preview pages of the CBT3306PW datasheet.

Product details

Description

The CBT3306 dual FET bus switch

Features

5 Ω switch connection between two ports.
Direct interface with TTL levels.
Overvoltage tolerant control inputs to 5.5 V.
IOFF circuitry provides partial Power-down mode operation.
Latch-up protection exceeds 100 mA per JESD78B.
ESD protection:.
HBM JESD22-A114F exceeds 2000 V.
CDM JESD22-C101D exceeds 1000 V.
Specified from -40 °C to +85 °C 3. Ordering information Table 1. Ordering information Type number Packa.
