CBT3306 Datasheet, Switch, NXP

CBT3306 Features

• Switch
• 5  switch connection between two ports
• TTL-compatible input levels
• Multiple package options
• Latch-up protection exceeds 100 mA per JESD78B

PDF File Details

Part number:

CBT3306

Manufacturer:

NXP ↗

File Size:

125.65kb

Download:

📄 Datasheet

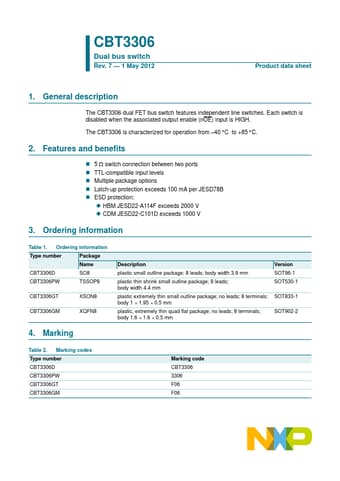

Description:

Dual bus switch. The CBT3306 dual FET bus switch features independent line switches. Each switch is disabled when the associated output enable (nOE)
