CBT3384

10-bit bus switch

CBT3384 Features

* I 5 Ω switch connection between two ports I TTL-compatible control input levels I Multiple package options I See CBTD3384 for CBT3384 with level shifting diodes I Latch-up protection exceeds 100 mA per JESD78 I ESD protection: N HBM JESD22-A114E exceeds 2000 V N CDM JESD22-C101C exceeds 1000 V 3. O

CBT3384 General Description

The CBT3384 provides ten bits of high-speed TTL-compatible bus switching. The low ON resistance of the switch allows connections to be made with minimal propagation delay. The CBT3384 device is organized as two 5-bit bus switches with two separate output enable (1OE, 2OE) inputs. When nOE is LOW, th.

CBT3384 Datasheet (86.70 KB)

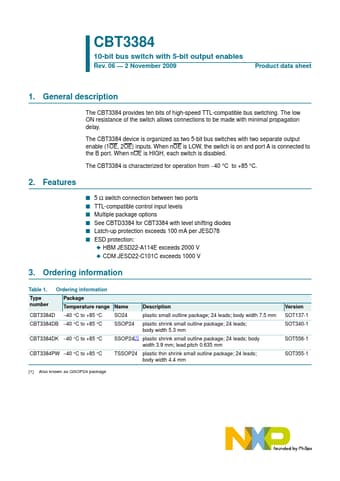

Preview of CBT3384 PDF

Datasheet Details

Part number:

CBT3384

Manufacturer:

NXP ↗

File Size:

86.70 KB

Description:

10-bit bus switch.
