CBT3306GT Datasheet, Switch, nexperia

CBT3306GT Features

  • Switch
  • 5 Ω switch connection between two ports
  • Direct interface with TTL levels
  • Overvoltage tolerant control inputs to 5.5 V
  • IOFF circuitry provides par

PDF File Details

Part number:

CBT3306GT

Manufacturer:

nexperia ↗

File Size:

203.67kb

Download:

📄 Datasheet

Description:

Dual bus switch. The CBT3306 dual FET bus switch features independent line switches. Each switch is disabled when the associated output enable (nOE) i

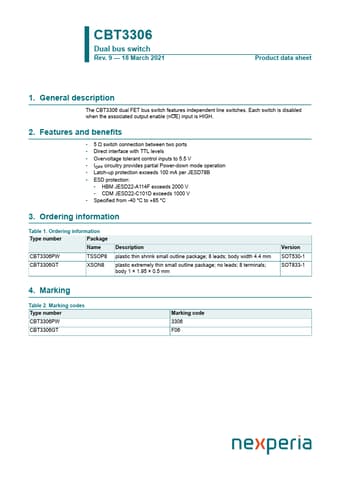

Datasheet Preview: CBT3306GT 📥 Download PDF (203.67kb)
Page 2 of CBT3306GT Page 3 of CBT3306GT
