CBT3257A

Quad 1-of-2 multiplexer/demultiplexer

CBT3257A Features

* 5 Ω switch connection between two ports

* TTL-compatible input levels

* Minimal propagation delay through the switch

* Latch-up protection exceeds 100 mA per JEDEC standard JESD78 class II level A

* ESD protection:

* HBM JESD22-A114F exceeds 2000 V

CBT3257A General Description

The CBT3257A is a quad 1-of-2 high-speed TTL-compatible multiplexer/demultiplexer. The low ON resistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise. Output enable (OE) and select-control (S) inputs select the a.

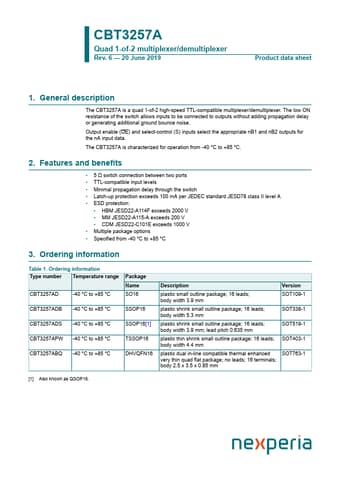

CBT3257A Datasheet (249.56 KB)

Preview of CBT3257A PDF

Datasheet Details

Part number:

CBT3257A

Manufacturer:

nexperia ↗

File Size:

249.56 KB

Description:

Quad 1-of-2 multiplexer/demultiplexer.
