GANE7R0-100CBA 100V Gallium Nitride FET

nexperia

Description

WLCSP6 GANE7R0-100CBA 100 V, 7.0 mOhm Gallium Nitride (GaN) FET in a 2.5 mm x 1.5 mm Wafer Level Chip-Scale Package (WLCSP) 13 March 2025 Product.
The GANE7R0-100CBA is a a general purpose 100 V, 7.

📥 Download Datasheet

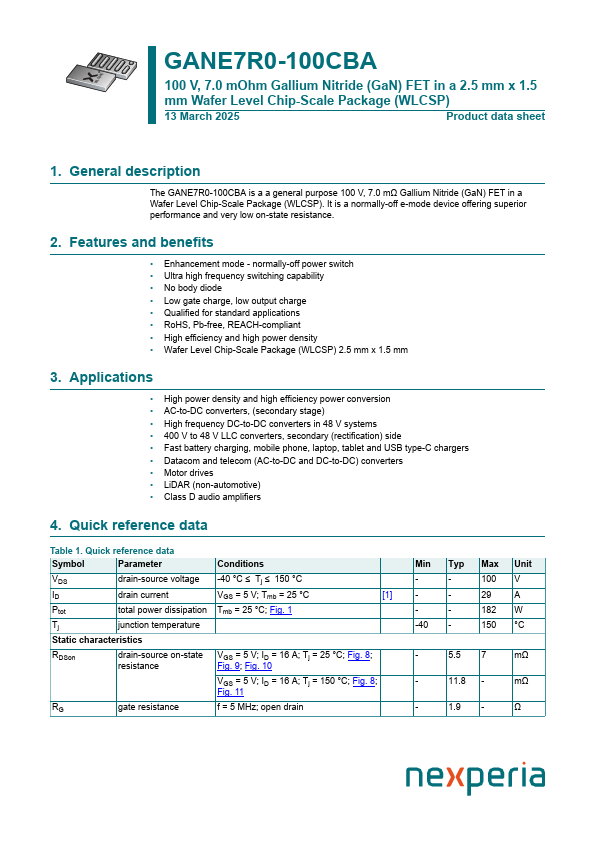

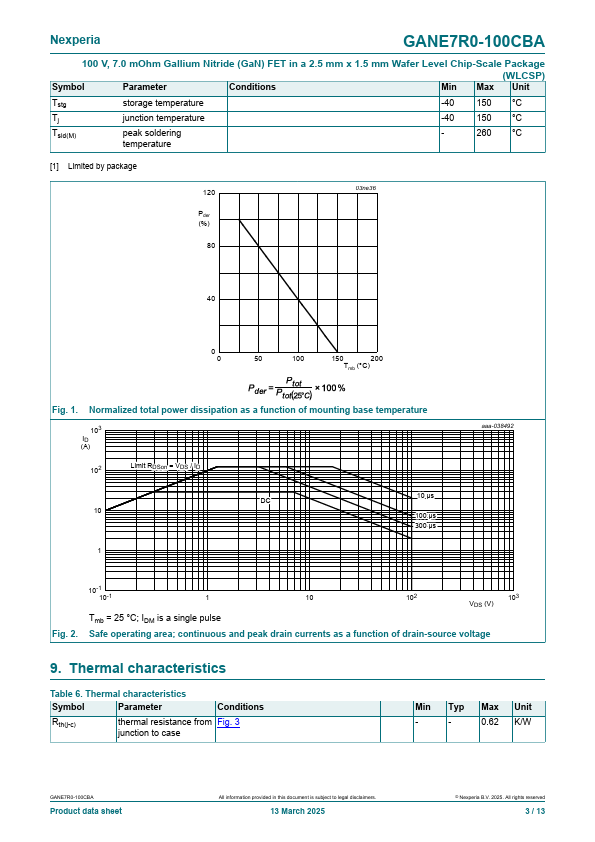

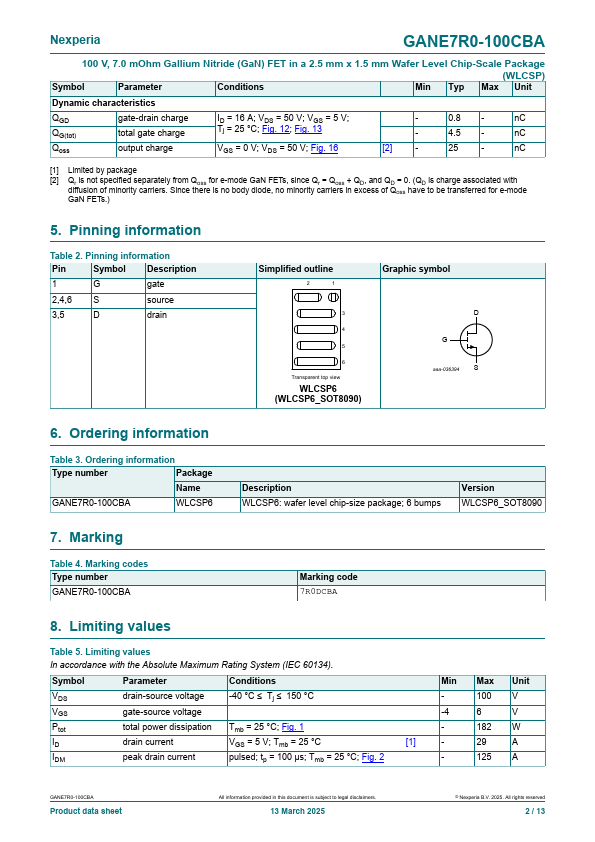

GANE7R0-100CBA Datasheet Preview — Preview of GANE7R0-100CBA PDF

Datasheet Specifications

Part number: GANE7R0-100CBA
Manufacturer: nexperia ↗
File Size: 412.75 KB
Datasheet: GANE7R0-100CBA-nexperia.pdf
Description: 100V Gallium Nitride FET

Features

* Enhancement mode - normally-off power switch
* Ultra high frequency switching capability
* No body diode
* Low gate charge, low output charge

Applications

* RoHS, Pb-free, REACH-compliant
* High efficiency and high power density
* Wafer Level Chip-Scale Package (WLCSP) 2.5 mm x 1.5 mm 3. Applications
* High power density and high efficiency power conversion
* AC-to-DC converters, (secondary stage)
* Hig
