HEF4043B - Quad R/S latch

HEF4043B Description

HEF4043B Quad R/S latch with 3-state outputs Rev.14 * 3 September 2024 Product data sheet 1.General .
The HEF4043B is a quad R/S latch with 3-state outputs and common output enable input (OE).

HEF4043B Features

* Wide supply voltage range from 3.0 V to 15.0 V
* CMOS low power dissipation
* High noise immunity
* Fully static operation
* 5 V, 10 V, and 15 V parametric ratings
* Standardized symmetrical output characteristics
* Complies with JEDEC standa

📥 Download Datasheet

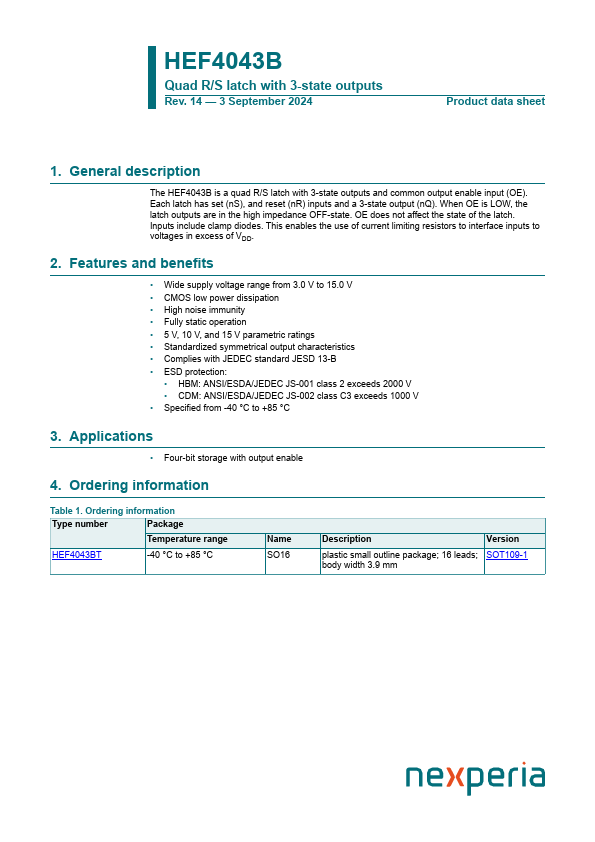

Preview of HEF4043B PDF

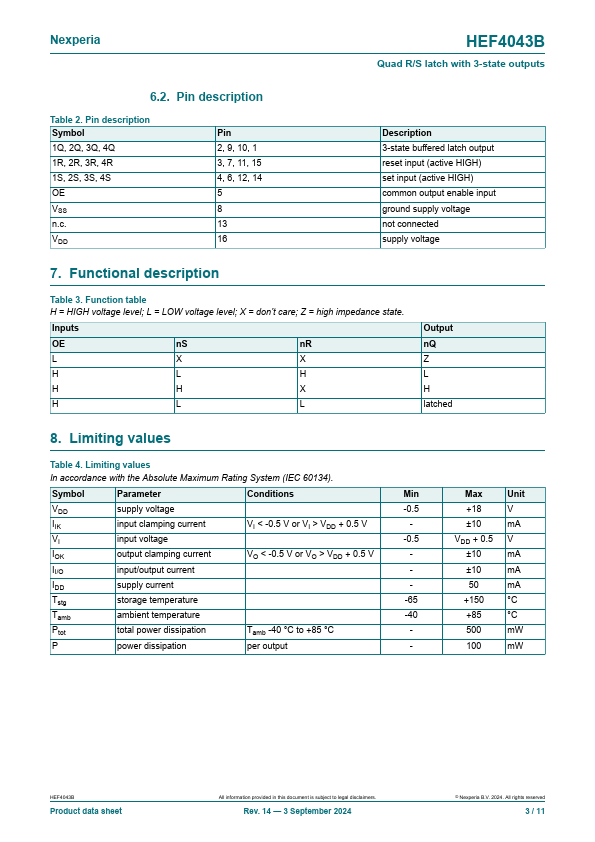

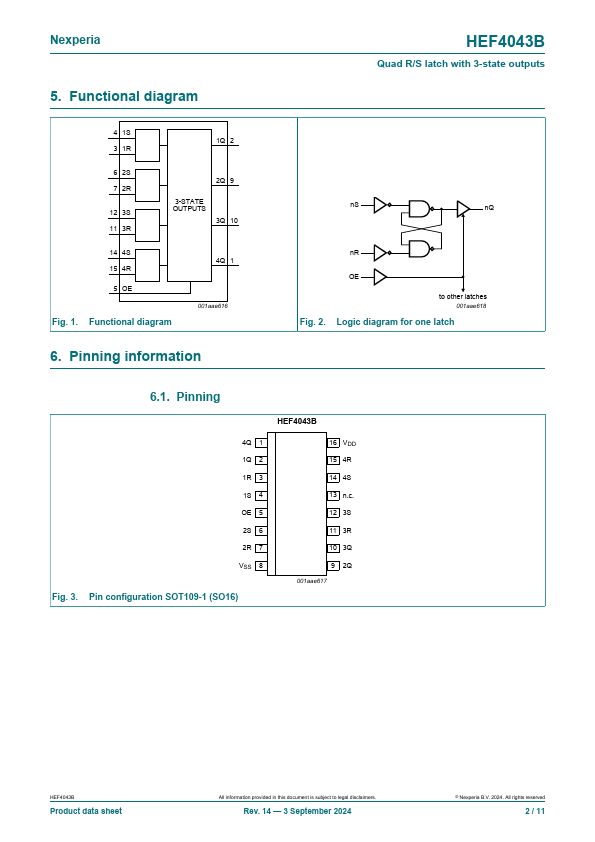

datasheet Preview Page 2 datasheet Preview Page 3
