PBSS4250X-Q - 50V 2A NPN low VCEsat transistor

nexperia

📥 Download Datasheet

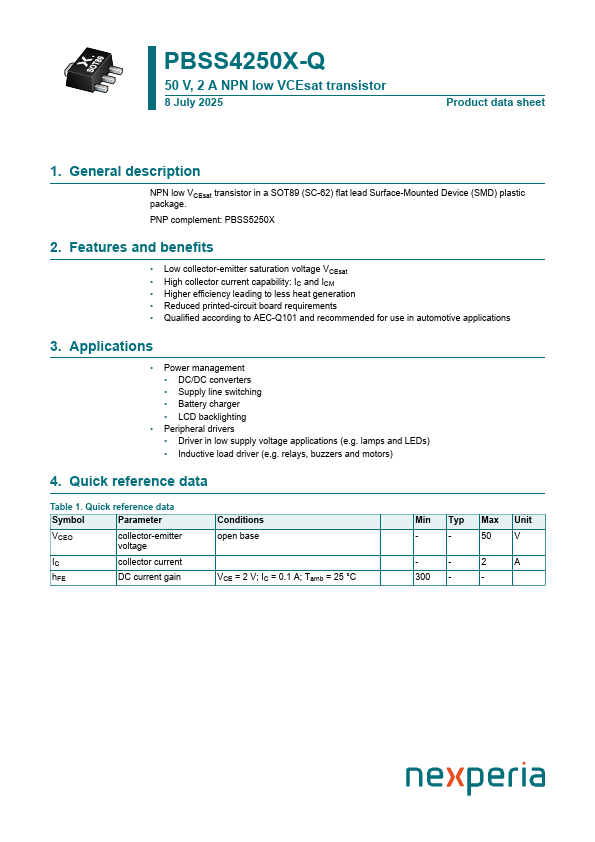

PBSS4250X-Q Datasheet Preview — Preview of PBSS4250X-Q PDF

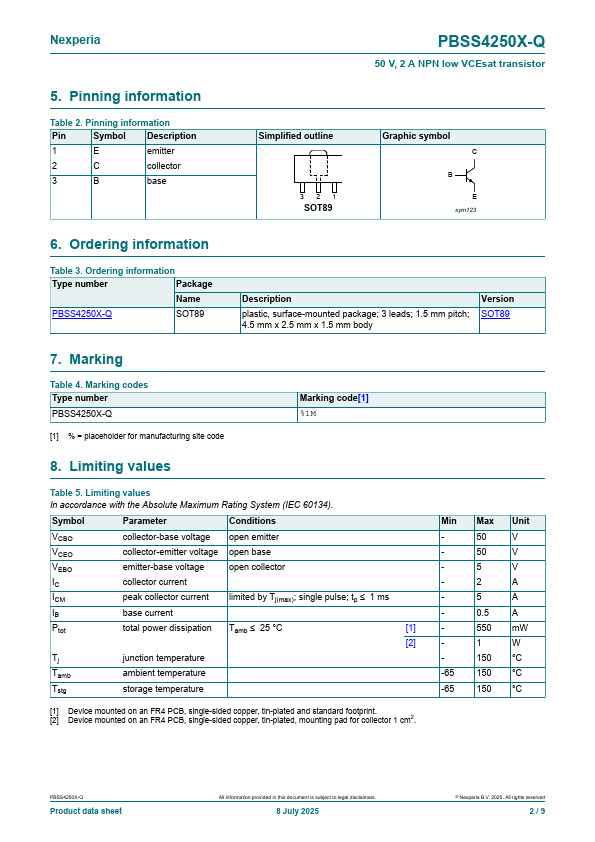

datasheet Preview Page 2

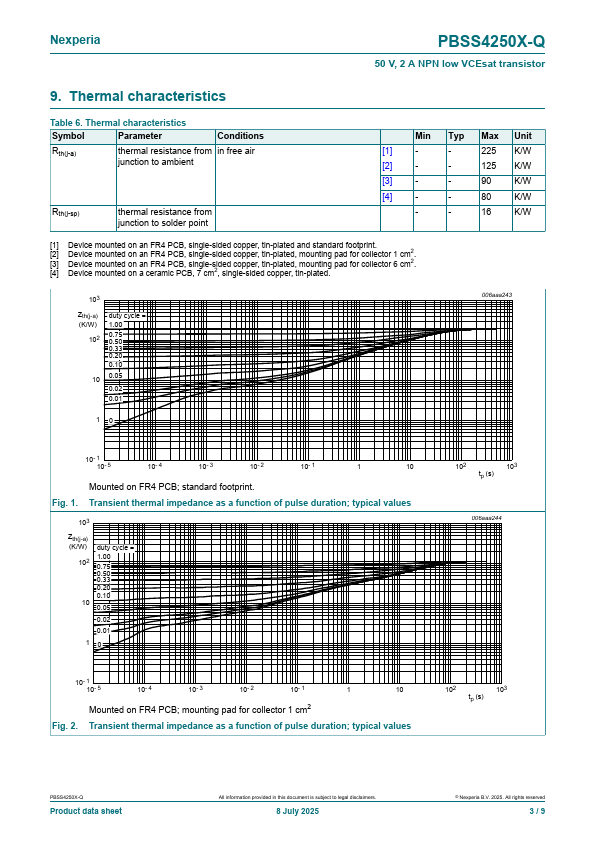

datasheet Preview Page 3

Datasheet Details

Part number	PBSS4250X-Q
Manufacturer	nexperia
File Size	209.10 KB
Description	50V 2A NPN low VCEsat transistor
Datasheet	PBSS4250X-Q-nexperia.pdf

PBSS4250X-Q Product details

Description

NPN low VCEsat transistor in a SOT89 (SC-62) flat lead Surface-Mounted Device (SMD) plastic package.

Features

Low collector-emitter saturation voltage VCEsat.
High collector current capability: IC and ICM.
Higher efficiency leading to less heat generation.
Reduced printed-circuit board requirements.
Qualified according to AEC-Q101 and recommended for use in automotive.
