PMZB170VNE - 12V N-channel Trench MOSFET

Name: PMZB170VNE
SKU: PMZB170VNE-1593328

nexperia

📥 Download Datasheet

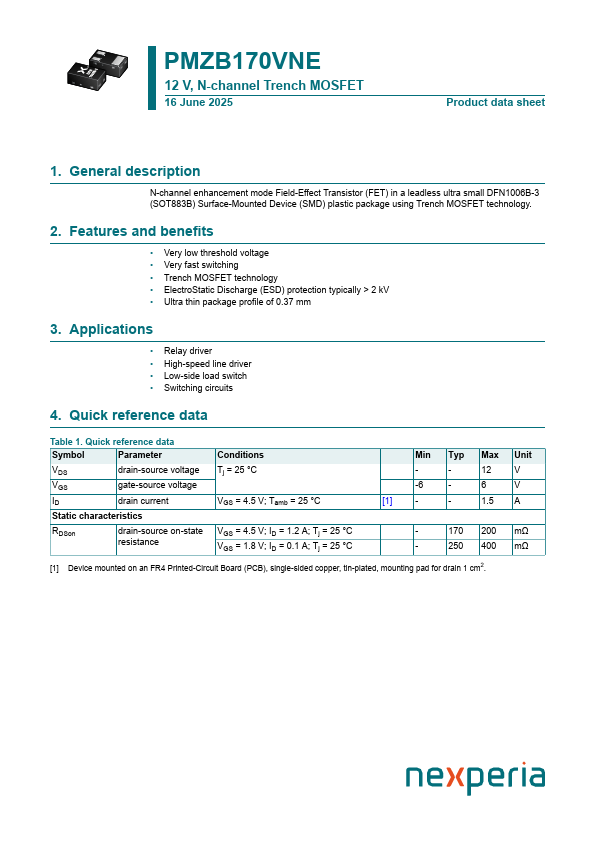

PMZB170VNE Datasheet Preview — Preview of PMZB170VNE PDF

Datasheet Details

Part number	PMZB170VNE
Manufacturer	nexperia
File Size	280.28 KB
Description	12V N-channel Trench MOSFET
Datasheet	PMZB170VNE-nexperia.pdf

PMZB170VNE Product details

Description

N-channel enhancement mode Field-Effect Transistor (FET) in a leadless ultra small DFN1006B-3 (SOT883B) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.

Features

Very low threshold voltage.
Very fast switching.
Trench MOSFET technology.
ElectroStatic Discharge (ESD) protection typically > 2 kV.
Ultra thin package profile of 0.37 mm 3.
