PMZB220VPE - 12V P-channel Trench MOSFET

Name: PMZB220VPE
SKU: PMZB220VPE-1593323

nexperia

📥 Download Datasheet

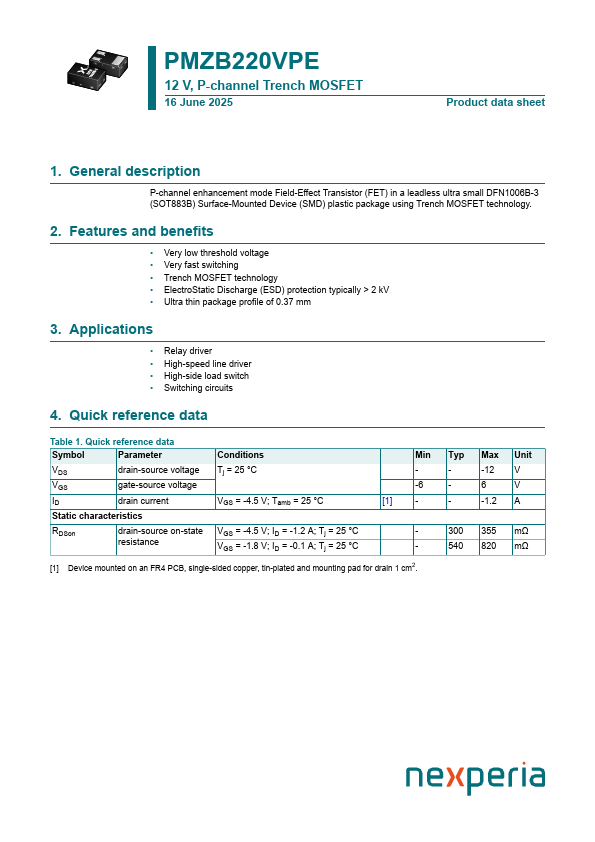

PMZB220VPE Datasheet Preview — Preview of PMZB220VPE PDF

Datasheet Details

Part number	PMZB220VPE
Manufacturer	nexperia
File Size	277.03 KB
Description	12V P-channel Trench MOSFET
Datasheet	PMZB220VPE-nexperia.pdf

PMZB220VPE Product details

Description

P-channel enhancement mode Field-Effect Transistor (FET) in a leadless ultra small DFN1006B-3 (SOT883B) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.

Features

Very low threshold voltage.
Very fast switching.
Trench MOSFET technology.
ElectroStatic Discharge (ESD) protection typically > 2 kV.
Ultra thin package profile of 0.37 mm 3.
