NTHL041N60S5H N-Channel Power MOSFET

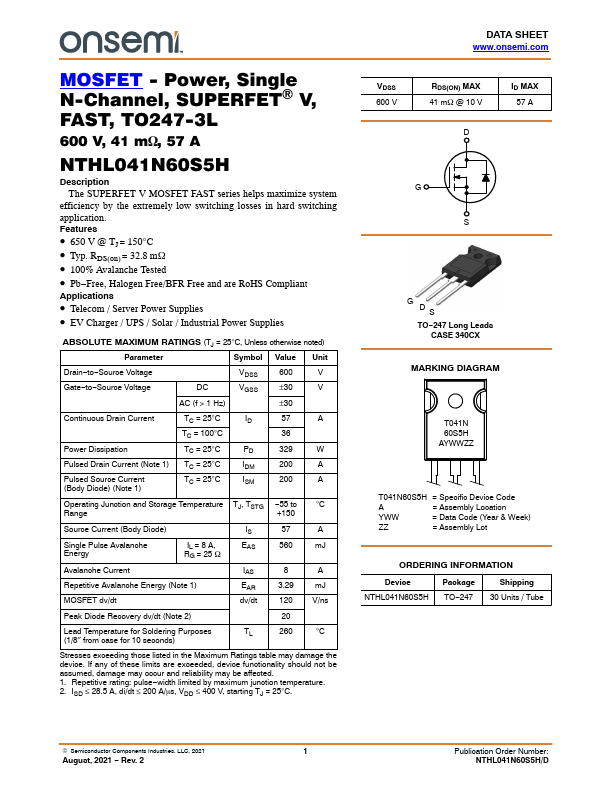

📥 Download Datasheet  Datasheet Preview Page 1

Description

MOSFET - Power, Single N-Channel, SUPERFET) V, FAST, TO247-3L 600 V, 41 mW, 57 A NTHL041N60S5H .
The SUPERFET V MOSFET FAST series helps maximize system efficiency by the extremely low switching losses in hard switching application.

📥 Download Datasheet

Preview of NTHL041N60S5H PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
NTHL041N60S5H
Manufacturer
onsemi
File Size
347.34 KB
Datasheet
NTHL041N60S5H-onsemi.pdf
Description
N-Channel Power MOSFET

Features

* 650 V @ TJ = 150°C
* Typ. RDS(on) = 32.8 mW
* 100% Avalanche Tested
* Pb

Applications

* Telecom / Server Power Supplies
* EV Charger / UPS / Solar / Industrial Power Supplies ABSOLUTE MAXIMUM RATINGS (TJ = 25°C, Unless otherwise noted) Parameter Symbol Value Unit Drain
* to
* Source Voltage Gate
* to
* Source Voltage VDSS 600 V DC VGSS
