NTHL020N090SC1 Datasheet - ON Semiconductor

NTHL020N090SC1, 900V SiC MOSFET

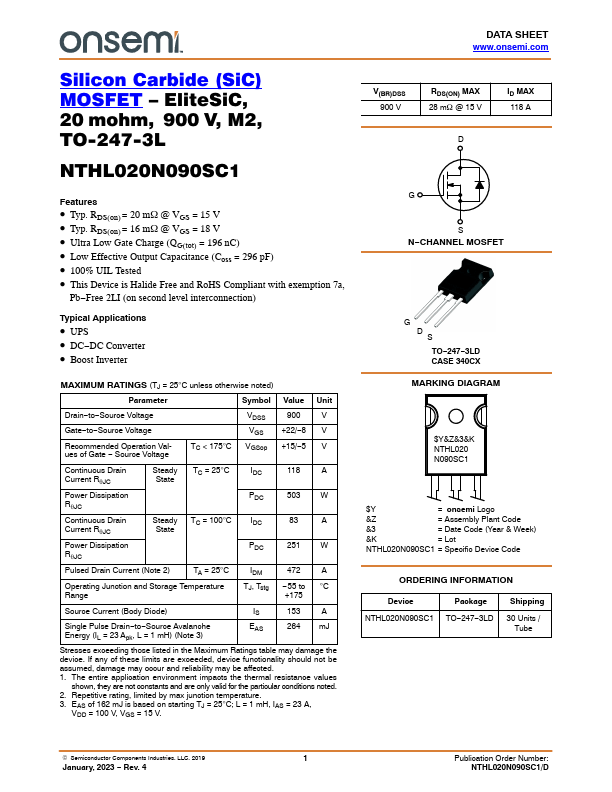

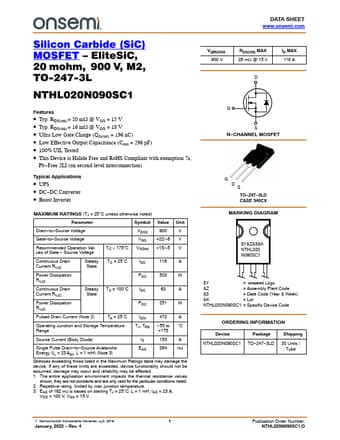

DATA SHEET www.onsemi.com Silicon Carbide (SiC) MOSFET * EliteSiC, 20 mohm, 900 V, M2, TO-247-3L V(BR)DSS 900 V RDS(ON) MAX 28 mW @ 15 V I.

datasheet Preview Page 1 from Datasheet4u.com

NTHL020N090SC1-ONSemiconductor.pdf

NTHL020N090SC1 Datasheet Preview — Preview of NTHL020N090SC1 PDF

Datasheet Details

Part number:

NTHL020N090SC1

Manufacturer:

ON Semiconductor ↗

File Size:

332.86 KB

Description:

900V SiC MOSFET

Features

* Typ. RDS(on) = 20 mW @ VGS = 15 V
* Typ. RDS(on) = 16 mW @ VGS = 18 V
* Ultra Low Gate Charge (QG(tot) = 196 nC)
* Low Effective Output Capacitance (Coss = 296 pF)
* 100% UIL Tested
* This Device is Halide Free and RoHS Compliant with exemption 7a, P

Applications

* UPS
* DC
* DC Converter
* Boost Inverter MAXIMUM RATINGS (TJ = 25°C unless otherwise noted) Parameter Symbol Value Unit Drain
* to
* Source Voltage Gate
* to
* Source Voltage Recommended Operation Values of Gate
* Source Voltage VD
