NTHL032N065M3S SiC MOSFET

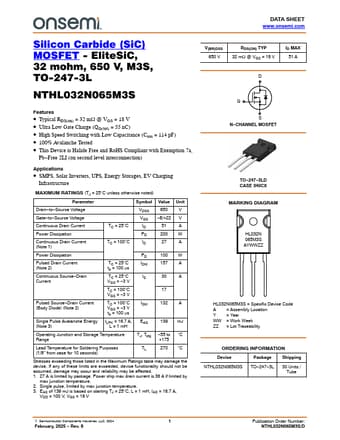

📥 Download Datasheet  Datasheet Preview Page 1

Description

DATA SHEET www.onsemi.com Silicon Carbide (SiC) MOSFET - EliteSiC, 32 mohm, 650 V, M3S, TO-247-3L V(BR)DSS 650 V RDS(ON) TYP 32 mW @ VGS = 18 V ID.

📥 Download Datasheet

Preview of NTHL032N065M3S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
NTHL032N065M3S
Manufacturer
onsemi
File Size
533.66 KB
Datasheet
NTHL032N065M3S-onsemi.pdf
Description
SiC MOSFET

Features

* Typical RDS(on) = 32 mW @ VGS = 18 V
* Ultra Low Gate Charge (QG(tot) = 55 nC)
* High Speed Switching with Low Capacitance (Coss = 114 pF)
* 100% Avalanche Tested
* This Device is Halide Free and RoHS Compliant with Exemption 7a, Pb
* Free 2LI (on seco

Applications

* SMPS, Solar Inverters, UPS, Energy Storages, EV Charging Infrastructure MAXIMUM RATINGS (TJ = 25°C unless otherwise noted) Parameter Symbol Value Unit Drain
* to
* Source Voltage Gate
* to
* Source Voltage Continuous Drain Current Power Dissipation Continuous Dr
