NTHL033N65S3HF, N-Channel MOSFET

NTHL033N65S3HF MOSFET * Power, N‐Channel, SUPERFET III, FRFET 650 V, 70 A, 33 mW .
SUPERFET III MOSFET is ON Semiconductor’s brand. new high voltage super. junction (SJ) MOSFET family that is utilizing charge balance te.

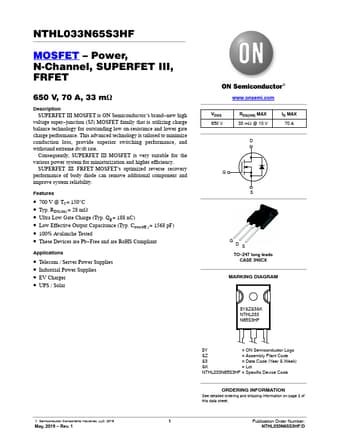

datasheet Preview Page 1 from Datasheet4u.com

NTHL033N65S3HF-ONSemiconductor.pdf

NTHL033N65S3HF Datasheet Preview — Preview of NTHL033N65S3HF PDF

Datasheet Details

Part number:

NTHL033N65S3HF

Manufacturer:

ON Semiconductor ↗

File Size:

449.93 KB

Description:

N-Channel MOSFET

Features

* 700 V @ TJ = 150°C
* Typ. RDS(on) = 28 mW
* Ultra Low Gate Charge (Typ. Qg = 188 nC)
* Low Effective Output Capacitance (Typ. Coss(eff. ) = 1568 pF)
* 100% Avalanche Tested
* These Devices are Pb

Applications

* Telecom / Server Power Supplies
* Industrial Power Supplies
* EV Charger
* UPS / Solar www. onsemi. com VDSS 650 V RDS(ON) MAX 33 mW @ 10 V ID MAX 70 A D G S GD S TO
* 247 long leads CASE 340CX MARKING DIAGRAM $Y&Z&3&K NTHL033 N65S3HF © Semiconductor Com
