NTHL020N120SC1, N-Channel MOSFET

MOSFET - SiC Power, Single N-Channel NTHL020N120SC1 1200 V, 20 mW, 103 A .

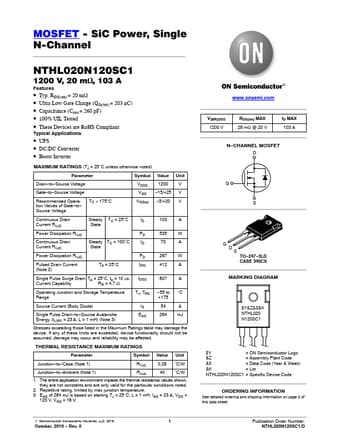

datasheet Preview Page 1 from Datasheet4u.com

NTHL020N120SC1-ONSemiconductor.pdf

NTHL020N120SC1 Datasheet Preview — Preview of NTHL020N120SC1 PDF

Datasheet Details

Part number:

NTHL020N120SC1

Manufacturer:

ON Semiconductor ↗

File Size:

228.79 KB

Description:

N-Channel MOSFET

Features

* Typ. RDS(on) = 20 mW
* Ultra Low Gate Charge (QG(tot) = 203 nC)
* Capacitance (Coss = 260 pF)
* 100% UIL Tested

Applications

* UPS
* DC/DC Converter
* Boost Inverter MAXIMUM RATINGS (TJ = 25°C unless otherwise noted) Parameter Symbol Value Unit Drain
* to
* Source Voltage Gate
* to
* Source Voltage Recommended Operation Values of Gate
* to
* Source Voltag
