NTHL027N65S3HF, N-Channel MOSFET

NTHL027N65S3HF Power MOSFET, N-Channel, SUPERFET) III, FRFET), 650 V, 75 A, 27.4 mW .
SUPERFET III MOSFET is ON Semiconductor’s brand. new high voltage super. junction (SJ) MOSFET family that is utilizing charge balance te.

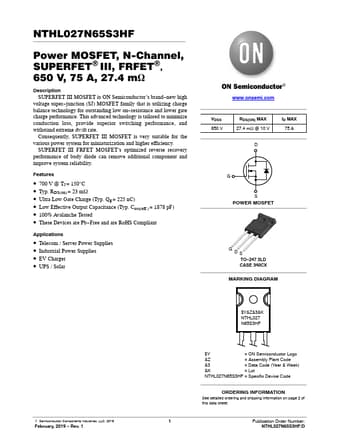

datasheet Preview Page 1 from Datasheet4u.com

NTHL027N65S3HF-ONSemiconductor.pdf

NTHL027N65S3HF Datasheet Preview — Preview of NTHL027N65S3HF PDF

Datasheet Details

Part number:

NTHL027N65S3HF

Manufacturer:

ON Semiconductor ↗

File Size:

413.37 KB

Description:

N-Channel MOSFET

Features

* 700 V @ TJ = 150°C
* Typ. RDS(on) = 23 mW
* Ultra Low Gate Charge (Typ. Qg = 225 nC)
* Low Effective Output Capacitance (Typ. Coss(eff. ) = 1878 pF)
* 100% Avalanche Tested
* These Devices are Pb

Applications

* Telecom / Server Power Supplies
* Industrial Power Supplies
* EV Charger
* UPS / Solar www. onsemi. com VDSS 650 V RDS(ON) MAX 27.4 mW @ 10 V ID MAX 75 A D G S POWER MOSFET G DS TO
* 247 3LD CASE 340CX MARKING DIAGRAM © Semiconductor Components Industrie
