Part number: TGL2207
Manufacturer: qorvo
File Size: 203.94KB
Download: 📄 Datasheet
Description: S-Band 100W VPIN Limiter
allow for simple integration with minimal impact to system performance.
The TGL2207 operates from 2 to 5 GHz and achieves low insertion loss of 0.5 dB and return loss of .
Lead-free and RoHS compliant.
Functional Block Diagram
1 RF IN
2 RF OUT
Key Features
* Frequency Range: 2 to 5 G.
S-Band 100 W VPIN Limiter
Data Sheet Rev A, January 2019 | Subject to change without notice
1 of 6
www.qorvo.com

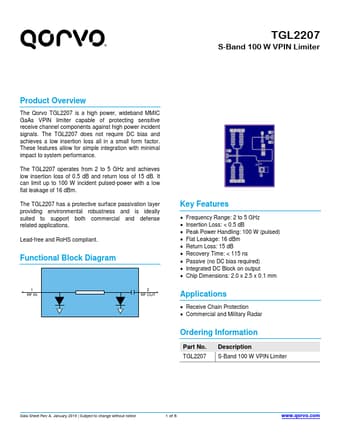

TGL2207 ® S-Band 100 W VPIN Limiter
Absolute Maximum Ratings
Parameter
Incident Power, CW or Pulsed, 50 , 25 °C Incident Power, CW.
