TGL2203 - Ka-Band 1 W VPIN Limiter

TriQuint Semiconductor

📥 Download Datasheet

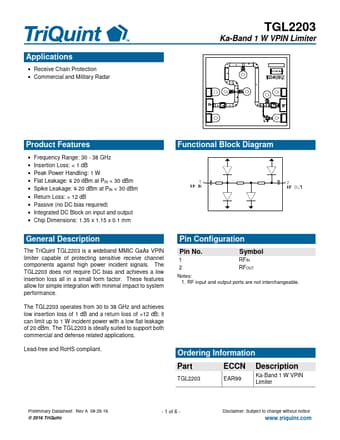

TGL2203 Datasheet Preview — Preview of TGL2203 PDF

Datasheet Details

Part number: TGL2203
Manufacturer: TriQuint Semiconductor
File Size: 119.30 KB
Datasheet: TGL2203-TriQuintSemiconductor.pdf
Description: Ka-Band 1 W VPIN Limiter

TGL2203 Product details

Description

The TriQuint TGL2203 is a wideband MMIC GaAs VPIN limiter capable of protecting sensitive receive channel components against high power incident signals.

Features

Frequency Range: 30 - 38 GHz.
Insertion Loss: < 1 dB.
Peak Power Handling: 1 W.
Flat Leakage: ≤ 20 dBm at PIN < 30 dBm.
Spike Leakage: ≤ 20 dBm at PIN < 30 dBm.
Return Loss: > 12 dB.
Passive (no DC bias required).
Integrated DC Block on input and output.
Chip Dimensions: 1.35 x 1.15 x 0.1 mm Functional Block Diagram General.
