TGL2209-SM - 50Watt VPIN Limiter

Qorvo

📥 Download Datasheet

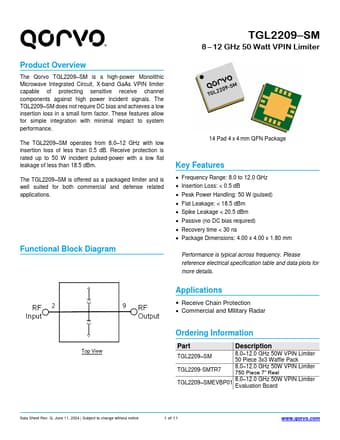

TGL2209-SM Datasheet Preview — Preview of TGL2209-SM PDF

Datasheet Details

Part number: TGL2209-SM
Manufacturer: Qorvo
File Size: 661.98 KB
Datasheet: TGL2209-SM-Qorvo.pdf
Description: 50Watt VPIN Limiter

TGL2209-SM Product details

Description

TGL2209 SM 8.0 12.0 GHz 50W VPIN Limiter 50 Piece 3x3 Waffle Pack TGL2209-SMTR7 8.0 12.0 GHz 50W VPIN Limiter 750 Piece 7” Reel TGL2209 SMEVBP01 8.0 12.0 GHz 50W Evaluation Board VPIN Limiter Data Sheet Rev.G, June 11, 2024 | Subject to change without notice 1 of 11 www.qorvo.com TGL2209 SM ® 8 12 GHz 50 Watt VPIN Limiter Absolute Maximum Ratings Recommended Operating Conditions Parameter Incident Power, Pulsed1, 50 , 25

Features

allow for simple integration with minimal impact to system performance. The TGL2209.
SM operates from 8.0.
12 GHz with low insertion loss of less than 0.5 dB. Receive protection is rated up to 50 W incident pulsed-power with a low flat leakage of less than 18.5 dBm. The TGL2209.
SM is offered as a packaged limiter and is well suited for both commercial and defense related.
