TGL2205-SM - 100 Watt VPIN Limiter

TriQuint Semiconductor

📥 Download Datasheet

TGL2205-SM Datasheet Preview — Preview of TGL2205-SM PDF

Datasheet Details

Part number: TGL2205-SM
Manufacturer: TriQuint Semiconductor
File Size: 762.27 KB
Datasheet: TGL2205-SM-TriQuintSemiconductor.pdf
Description: 100 Watt VPIN Limiter

TGL2205-SM Product details

Description

The TriQuint TGL2205-SM is a high power, wideband GaAs VPIN limiter capable of protecting sensitive receive channel components against high power incident signals.

Features

Frequency Range: 2 to 6 GHz.
Insertion Loss: < 0.6 dB.
Peak Power Handling: 100 W (pulsed).
Flat Leakage: < 16.5 dBm.
Passive (no DC bias required).
Integrated DC Block on output.
Spike Leakage < 0.5 dB.
Recovery time < 115 ns.

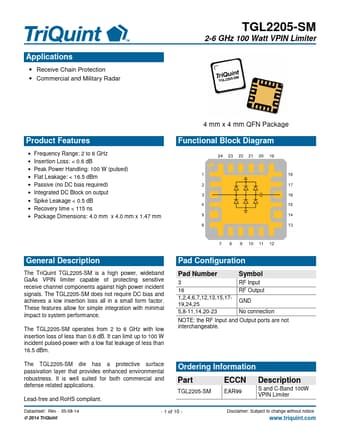

Package Dimensions: 4.0 mm x 4.0 mm x 1.47 mm 4 mm x 4 mm QFN Package Functional Block Diagram General.
