TGL2226-SM - 0.1 - 15GHz 6-Bit Digital Attenuator

Qorvo

📥 Download Datasheet

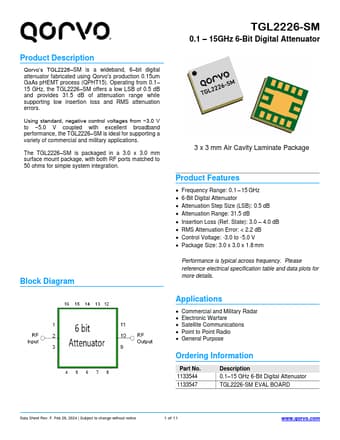

TGL2226-SM Datasheet Preview — Preview of TGL2226-SM PDF

Datasheet Details

Part number: TGL2226-SM
Manufacturer: Qorvo
File Size: 690.68 KB
Datasheet: TGL2226-SM-Qorvo.pdf
Description: 0.1 - 15GHz 6-Bit Digital Attenuator

TGL2226-SM Product details

Description

Qorvo’s TGL2226 SM is a wideband, 6 bit digital attenuator fabricated using Qorvo's production 0.15um GaAs pHEMT process (QPHT15). 15 GHz, the TGL2226 SM offers a low LSB of 0.5 dB and provides 31.5 dB of attenuation range while supporting low insertion loss and RMS attenuation errors. 3.0 V to 5.0 V coupled with excellent broadband performance, the TGL2226 SM is ideal for

Features

Frequency Range: 0.1 .
15 GHz.
6-Bit Digital Attenuator.
Attenuation Step Size (LSB): 0.5 dB.
Attenuation Range: 31.5 dB.
Insertion Loss (Ref. State): 3.0.
4.0 dB.
RMS Attenuation Error: < 2.2 dB.
Control Voltage: -3.0 to -5.0 V.
Package Size: 3.0 x 3.0 x 1.8 mm Performance is typical across frequency. Please reference electrical specification table and data plots for more details.
