TGL2767 - Voltage Variable Attenuator

Qorvo

📥 Download Datasheet

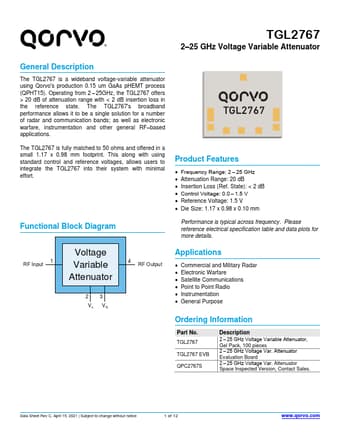

TGL2767 Datasheet Preview — Preview of TGL2767 PDF

Datasheet Details

Part number: TGL2767
Manufacturer: Qorvo
File Size: 409.18 KB
Datasheet: TGL2767-Qorvo.pdf
Description: Voltage Variable Attenuator

TGL2767 Product details

Description

The TGL2767 is a wideband voltage-variable attenuator using Qorvo's production 0.15 um GaAs pHEMT process (QPHT15). 25GHz, the TGL2767 offers > 20 dB of attenuation range with < 2 dB insertion loss in the reference state. based applications.

Features

Frequency Range: 2 .
25 GHz.
Attenuation Range: 20 dB.
Insertion Loss (Ref. State): < 2 dB.
Control Voltage: 0.0 .
1.5 V.
Reference Voltage: 1.5 V.
Die Size: 1.17 x 0.98 x 0.10 mm Functional Block Diagram Performance is typical across frequency. Please reference electrical specification table and data plots for more details. RF Input 1 Voltage Variable Attenuator 23 Vc VS 4 RF Output.
