TGL2210-SM 100 Watt VPIN Limiter

TGL2210-SM 0.05 *6.0 GHz 100W VPIN Limiter TGL2210-SMEVB-01 Evaluation Board Data Sheet Rev. D, Mar. 09, 2023 | Subject to change without notice 1 of 10 www.qorvo.com TGL2210-SM ® 0.05 * 6.0 GHz 100 Watt VPIN Limiter Absolute Maximum Ratings Parameter Rating Incident Powe.

® Product Overview The Qorvo TGL2210-SM is a high-power receive protection circuit (limiter) operating from 0.056GHz. Capable of withstanding up to 100 W incident power levels, the TGL2210-SM allows < 17 dBm flat leakage to pass through and contributes < 0.7 dB in insertion loss. Using Qorvo’s passive GaAs VPIN technology, the TGL2210-SM does not require bias and is offered in a small 4 x 4 (mm) plastic overmold package. This simplifies system integration while maximizing performance and protect.

TGL2210-SM Features

* Frequency Range: 0.05 to 6.0 GHz

* Insertion Loss: < 0.7 dB

* Peak Power Handling: 100 W (pulsed)

* Flat Leakage: < 17 dBm

* Passive (no DC bias required)

* Recovery time < 40 ns

* QFN Package Dimensions: 4.0 x 4.0 x 0.85 mm Functional Block

TGL2210-SM-Qorvo.pdf

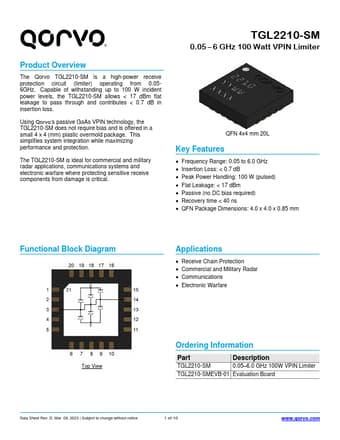

TGL2210-SM Datasheet Preview — Preview of TGL2210-SM PDF

Datasheet Details

Part number:

TGL2210-SM

Manufacturer:

Qorvo

File Size:

545.33 KB

Description:

100 watt vpin limiter.
