TGL2207-SM - 100 Watt VPIN Limiter

Qorvo

📥 Download Datasheet

TGL2207-SM Datasheet Preview — Preview of TGL2207-SM PDF

Datasheet Details

Part number: TGL2207-SM
Manufacturer: Qorvo
File Size: 588.40 KB
Datasheet: TGL2207-SM-Qorvo.pdf
Description: 100 Watt VPIN Limiter

TGL2207-SM Product details

Description

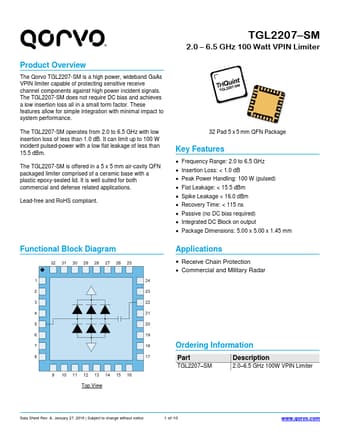

2.0 6.5 GHz 100W VPIN Limiter Data Sheet Rev.A, January 27, 2019 | Subject to change without notice 1 of 10 www.qorvo.com TGL2207 SM ® 2.0 6.5 GHz 100 Watt VPIN Limiter Absolute Maximum Ratings Recommended Operating Conditions Parameter Rating Incident Power, CW or Pulsed, 50 , 25 °C 100 W Incident Power, CW or Pulsed, 50 , 85 °C Mounting Temperature (30 s max) 70 W 260 °C Storage Temperature -40 to 150 °C Exceeding any one or a combination of the Abs

Features

allow for simple integration with minimal impact to system performance. The TGL2207-SM operates from 2.0 to 6.5 GHz with low insertion loss of less than 1.0 dB. It can limit up to 100 W incident pulsed-power with a low flat leakage of less than 15.5 dBm. The TGL2207-SM is offered in a 5 x 5 mm air-cavity QFN packaged limiter comprised of a ceramic base with a plastic epoxy-sealed lid. It is well suited for both commercial and defense related.
