TGL2223-SM - 5-Bit Digital Attenuator

Qorvo

📥 Download Datasheet

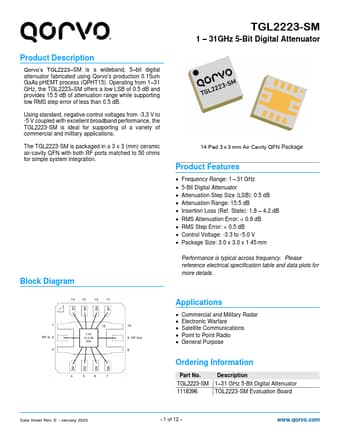

TGL2223-SM Datasheet Preview — Preview of TGL2223-SM PDF

Datasheet Details

Part number: TGL2223-SM
Manufacturer: Qorvo
File Size: 903.83 KB
Datasheet: TGL2223-SM-Qorvo.pdf
Description: 5-Bit Digital Attenuator

TGL2223-SM Product details

Description

Qorvo’s TGL2223 SM is a wideband, 5 bit digital attenuator fabricated using Qorvo's production 0.15um GaAs pHEMT process (QPHT15). 31 GHz, the TGL2223 SM offers a low LSB of 0.5 dB and provides 15.5 dB of attenuation range while supporting low RMS step error of less than 0.5 dB.

Features

Frequency Range: 1 .
31 GHz.
5-Bit Digital Attenuator.
Attenuation Step Size (LSB): 0.5 dB.
Attenuation Range: 15.5 dB.
Insertion Loss (Ref. State): 1.8.
4.2 dB.
RMS Attenuation Error: < 0.9 dB.
RMS Step Error: < 0.5 dB.
Control Voltage: -3.3 to -5.0 V.
Package Size: 3.0 x 3.0 x 1.45 mm Performance is typical across frequency. Please reference electrical specification table and data plots for more.
