TGL2206-SM - 100 Watt VPIN Limiter

TriQuint Semiconductor

📥 Download Datasheet

TGL2206-SM Datasheet Preview — Preview of TGL2206-SM PDF

Datasheet Details

Part number: TGL2206-SM
Manufacturer: TriQuint Semiconductor
File Size: 1.06 MB
Datasheet: TGL2206-SM-TriQuintSemiconductor.pdf
Description: 100 Watt VPIN Limiter

TGL2206-SM Product details

Description

The TriQuint TGL2206-SM is a high power, wideband GaAs VPIN limiter capable of protecting sensitive receive channel components against high power incident signals.

Features

Frequency Range: 2.0 to 5.5 GHz.
Insertion Loss: < 1.0 dB.
Peak Power Handling: 100 W (pulsed).
Flat Leakage: < 15.5 dBm.
Passive (no DC bias required).
Integrated DC Block on output.
Spike Leakage < 16 dBm.
Recovery time < 115 ns.

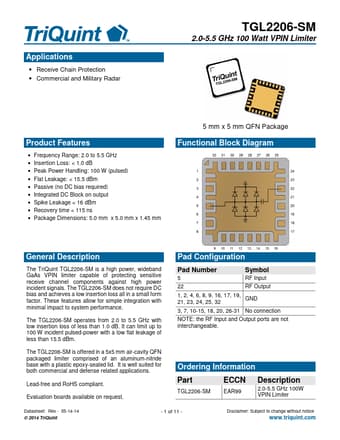

Package Dimensions: 5.0 mm x 5.0 mm x 1.45 mm 5 mm x 5 mm QFN Package Functional Block Diagram General.
