TGL2217-SM - 10W VPIN Limiter

qorvo

📥 Download Datasheet

TGL2217-SM Datasheet Preview — Preview of TGL2217-SM PDF

Datasheet Details

Part number: TGL2217-SM
Manufacturer: qorvo
File Size: 587.08 KB
Datasheet: TGL2217-SM-qorvo.pdf
Description: 10W VPIN Limiter

TGL2217-SM Product details

Description

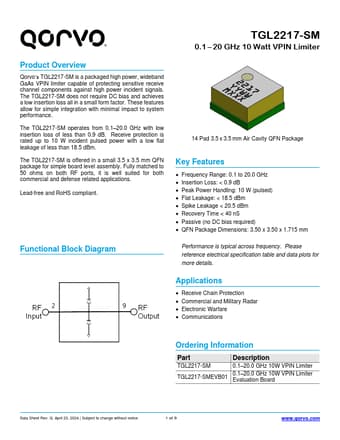

0.1 20.0 GHz 10W VPIN Limiter 0.1 20.0 GHz 10W VPIN Limiter Evaluation Board Data Sheet Rev.G, April 23, 2024 | Subject to change without notice 1 of 9 www.qorvo.com TGL2217-SM ® 0.1 20 GHz 10 Watt VPIN Limiter Absolute Maximum Ratings Parameter Rating Incident Power, Pulsed, 50 , 85 °C 40 dBm Incident Power, CW, 50 , 25 °C 36 dBm Incident Power, CW, 50 , 85 °C 33 dBm Mounting Temperature (30 s max) 260 °C Storage Temperature -40 to 150 °C Exceed

Features

allow for simple integration with minimal impact to system performance. The TGL2217-SM operates from 0.1.
20.0 GHz with low insertion loss of less than 0.9 dB. Receive protection is rated up to 10 W incident pulsed power with a low flat leakage of less than 18.5 dBm. The TGL2217-SM is offered in a small 3.5 x 3.5 mm QFN package for simple board level assembly. Fully matched to 50 ohms on both RF ports, it is well suited for both commercial and defense related.
