TGL2201, Wideband VPIN Limiter

Product Data Sheet November 15, 2006 Wideband Dual Stage VPIN Limiter Key .

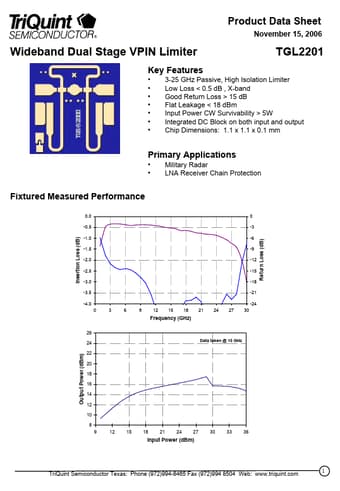

datasheet Preview Page 1 from Datasheet4u.com

TGL2201_TriQuintSemiconductor.pdf

TGL2201 Datasheet Preview — Preview of TGL2201 PDF

Datasheet Details

Part number:

TGL2201

Manufacturer:

TriQuint Semiconductor

File Size:

273.91 KB

Description:

Wideband VPIN Limiter

Features

* TGL2201 3-25 GHz Passive, High Isolation Limiter Low Loss < 0.5 dB , X-band Good Return Loss > 15 dB Flat Leakage < 18 dBm Input Power CW Survivability > 5W Integrated DC Block on both input and output Chip Dimensions: 1.1 x 1.1

Applications

* Military Radar LNA Receiver Chain Protection Fixtured Measured Performance 0.0 -0.5 0 -3 Insertion Loss (dB) -1.5 www. DataSheet. net/ -9 -12 -15 -18 -21 -24 0 3 6 9 12 15 18 21 24 27 30 -2.0 -2.5 -3.0 -3.5 -4.0 Frequency (GHz) 26 24 Data taken @ 10 GHz Output Power (dBm) 2
