TGL2217-SM - 100 Watt VPIN Limiter

TriQuint Semiconductor

📥 Download Datasheet

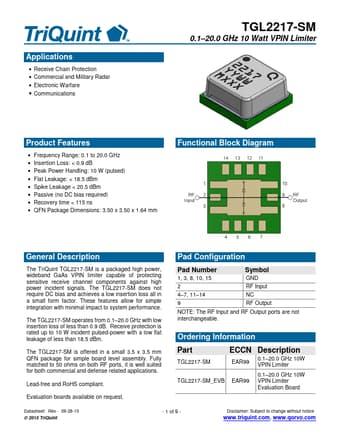

TGL2217-SM Datasheet Preview — Preview of TGL2217-SM PDF

Datasheet Details

Part number: TGL2217-SM
Manufacturer: TriQuint Semiconductor
File Size: 1.30 MB
Datasheet: TGL2217-SM-TriQuintSemiconductor.pdf
Description: 100 Watt VPIN Limiter

TGL2217-SM Product details

Description

The TriQuint TGL2217-SM is a packaged high power, wideband GaAs VPIN limiter capable of protecting sensitive receive channel components against high power incident signals.

Features

Frequency Range: 0.1 to 20.0 GHz.
Insertion Loss: < 0.9 dB.
Peak Power Handling: 10 W (pulsed).
Flat Leakage: < 18.5 dBm.
Spike Leakage < 20.5 dBm.
Passive (no DC bias required).
Recovery time < 115 ns.
QFN Package Dimensions: 3.50 x 3.50 x 1.64 mm Functional Block Diagram General.
