TGL2223-SM Datasheet - TriQuint Semiconductor

TGL2223-SM 5-Bit Attenuator

TriQuint’s TGL2223-SM is a wideband, 5-bit digital attenuator using TriQuint’s TQPHT15 production 0.15um GaAs pHEMT process. Operating from 0.1 31 GHz, the TGL2223-SM offers a low LSB of 0.5 dB and supports > 15.5 dB of attenuation range with a low RMS step error of < 0.5 dB. Using standard, negativ.

TGL2223-SM Features

* Frequency Range: 0.1-31 GHz

* 5-Bit Digital Attenuator

* Attenuation Step Size (LSB): 0.5 dB

* Attenuation Range: 15.5 dB

* Insertion Loss (Ref. State): 1.8-4.2 dB

* RMS Attenuation Error: < 0.9 dB

* RMS Step Error: < 0.5 dB

* Control

TGL2223-SM-TriQuintSemiconductor.pdf

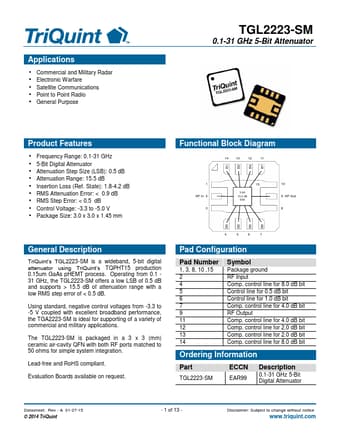

TGL2223-SM Datasheet Preview — Preview of TGL2223-SM PDF

Datasheet Details

Part number:

TGL2223-SM

Manufacturer:

TriQuint Semiconductor

File Size:

895.46 KB

Description:

5-bit attenuator.
