TQP9111 2-Watt Power Amplifier

2,500 pieces on a 13” reel (standard) 1.8 * 2.2 GHz Evaluation Board 2.3 * 2.7 GHz Evaluation Board 1 of 14 www.qorvo.com ® Absolute Maximum Ratings Parameter Rating Storage Temperature *55 to +150 °C RF Input Power, CW, 50 Ω, T +25 °C +23 dBm Device Supply Voltage.

TQP9111 ® 1.8 2.7 GHz 2-Watt Power Amplifier Product Overview The TQP9111 is a high efficiency two-stage driver amplifier in a low-cost surface mount package. The amplifier is able to achieve high performance with +46 dBm OIP3 and +32.5 dBm P1dB. This linear amplifier integrates two high performance amplifier stages onto a module allow for a compact system design. The integrated inter-stage match minimizes performance variation that would otherwise be attributed to external matching.

TQP9111 Features

* 1.8

* 2.7 GHz Frequency Range

* 29.8 dB Gain Typical

* +32.5 dBm P1dB

* +46 dBm Output IP3 at +14 dBm/tone

* Integrated Inter-stage Matching

* Bias Adjustable

* Internal RF Overdrive Protection

* Internal DC Overvoltage Protec

TQP9111-qorvo.pdf

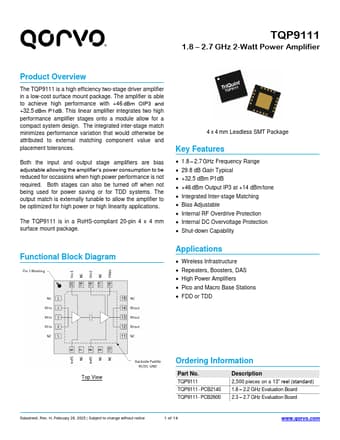

TQP9111 Datasheet Preview — Preview of TQP9111 PDF

Datasheet Details

Part number:

TQP9111

Manufacturer:

qorvo

File Size:

0.97 MB

Description:

2-watt power amplifier.
