uP9642B, Smart Power Stage

uP9642B Smart Power Stage (SPS) with Integrated Current and Temperature Monitors General .
Features The uP9642B is a Smart Power Stage (SPS) solution with fully optimized, integrated driver and MOSFETs for highcurrent, high frequency, sync.

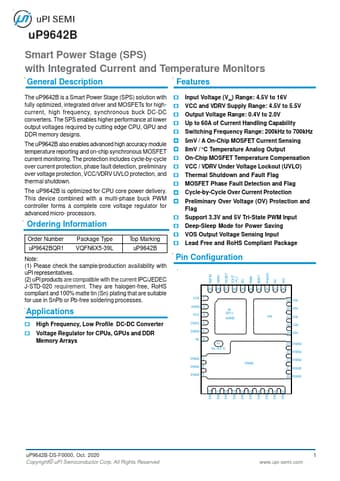

datasheet Preview Page 1 from Datasheet4u.com

uP9642B-uPISemiconductor.pdf

uP9642B Datasheet Preview — Preview of uP9642B PDF

Datasheet Details

Part number:

uP9642B

Manufacturer:

uPI Semiconductor

File Size:

225.46 KB

Description:

Smart Power Stage

Features

* The uP9642B is a Smart Power Stage (SPS) solution with fully optimized, integrated driver and MOSFETs for highcurrent, high frequency, synchronous buck DC-DC converters. The SPS enables higher performance at lower output voltages required by cutting edge CPU, GPU and DDR memory designs. The uP9642B

Applications

* High Frequency, Low Profile DC-DC Converter Voltage Regulator for CPUs, GPUs and DDR Memory Arrays Input Voltage (V ) Range: 4.5V to 16V IN VCC and VDRV Supply Range: 4.5V to 5.5V Output Voltage Range: 0.4V to 2.0V Up to 60A of Current Handling Capability Switching Frequency Range: 2
