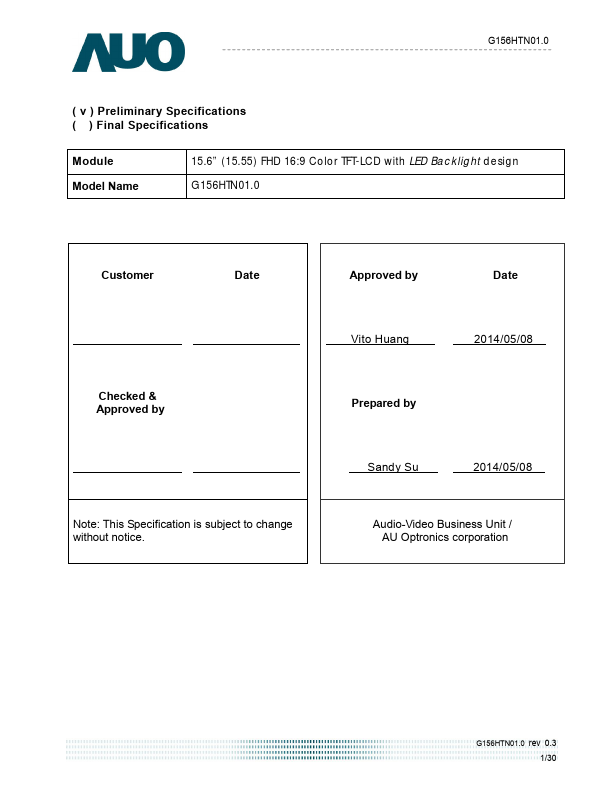

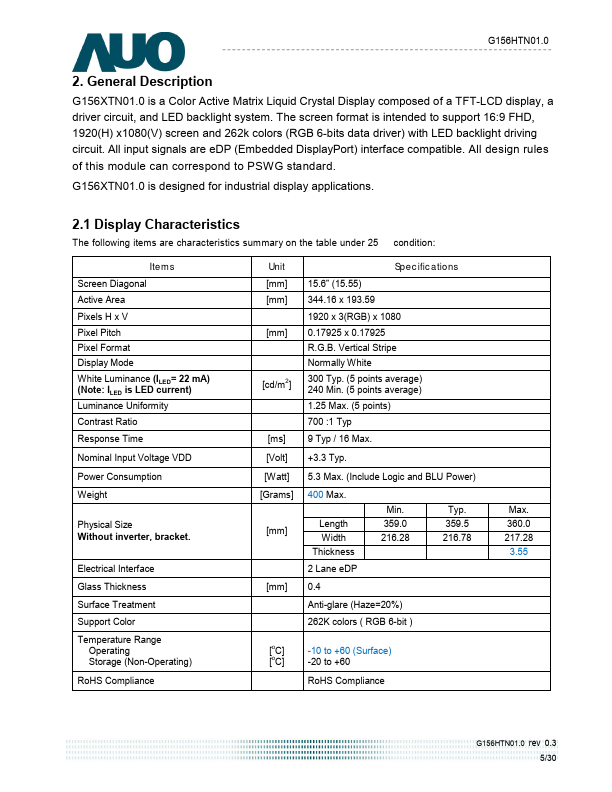

( v ) Preliminary Specifications ( ) Final Specifications Module Model Name 15.6” (15.55) FHD 16:9 Color TFT-LCD with LED Backlight design G156HTN01.0 Customer Date Checked & Approved by Note: This Specification is subject to change without notice. Approved by Date Vito Huang 2014/05/08 Prepared by Sandy Su 2014/05/08 Audio-Video Business Unit / AU Optronics corporation G156HTN01.0 rev 0.3 1/30 2. General Description G156XTN01.0 is a Color Active Matrix Liquid Crystal Display posed of a TFT-LCD display, a driver circuit, and LED backlight system. The screen format is intended to support 16:9 FHD, 1920(H) x1080(V) screen and 262k colors (RGB 6-bits data driver) with LED backlight driving circuit. All input signals are e DP (Embedded Display Port) interface patible. All design rules of this module can correspond to PSWG standard. G156XTN01.0 is designed for industrial display applications. 2.1 Display Characteristics The following items are characteristics summary on the table under 25Ċ condition: Items Screen Diagonal Active Area Pixels H x V Pixel Pitch Pixel Format Display Mode White Luminance (ILED= 22 m A) (Note: ILED is LED current) Luminance Uniformity Contrast Ratio Response Time Nominal Input Voltage VDD Power Consumption Weight Physical Size Without inverter, bracket. Electrical Interface Glass Thickness Surface Treatment Support Color Temperature Range Operating Storage (Non-Operating) Ro HS pliance Unit [mm] [mm] [mm] [cd/m2] [ms] [Volt] [Watt] [Grams]...
