G156HTN02.0
G156HTN02.0 is FHD Color TFT-LCD manufactured by AU Optronics.

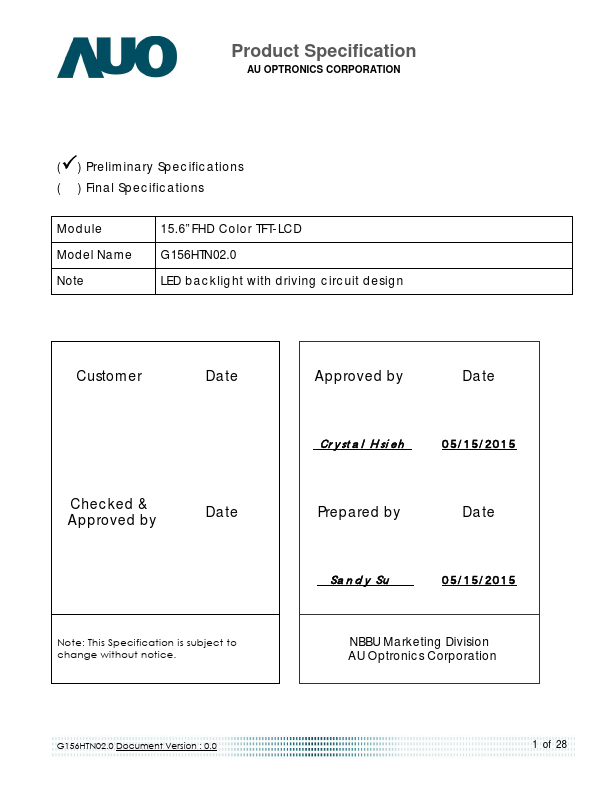

Product Specification
AU OPTRONICS CORPORATION
( ) Preliminary Specifications ( ) Final Specifications
Module Model Name Note
15.6”FHD Color TFT-LCD G156HTN02.0 LED backlight with driving circuit design
Customer
Date
Checked & Approved by
Date
Note: This Specification is subject to change without notice.
Approved by
Date
Crystal Hsieh
05/15/2015
Prepared by
Date
Sandy Su
05/15/2015
NBBU Marketing Division AU Optronics Corporation
G156HTN02.0 Document Version : 0.0
1 of 28
Product Specification
AU OPTRONICS CORPORATION

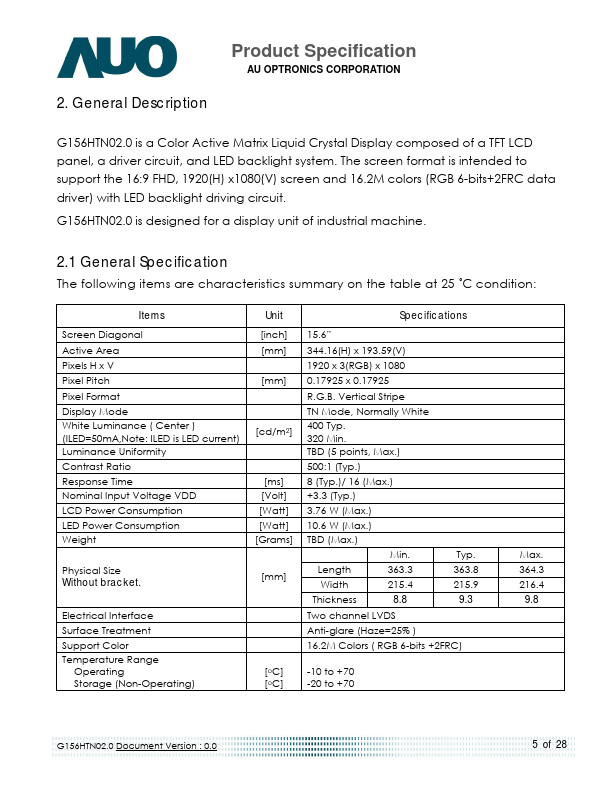

2. General Description
G156HTN02.0 is a Color Active Matrix Liquid Crystal Display posed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the 16:9 FHD, 1920(H) x1080(V) screen and 16.2M colors (RGB 6-bits+2FRC data driver) with LED backlight driving circuit.
G156HTN02.0 is designed for a display unit of industrial machine.
2.1 General Specification
The following items are characteristics summary on the table at 25 ˚C condition:
Items
Screen Diagonal Active Area Pixels H x V Pixel Pitch Pixel Format Display Mode White Luminance ( Center ) (ILED=50m A,Note: ILED is LED current) Luminance Uniformity Contrast Ratio Response Time Nominal Input Voltage VDD LCD Power Consumption LED Power Consumption...
