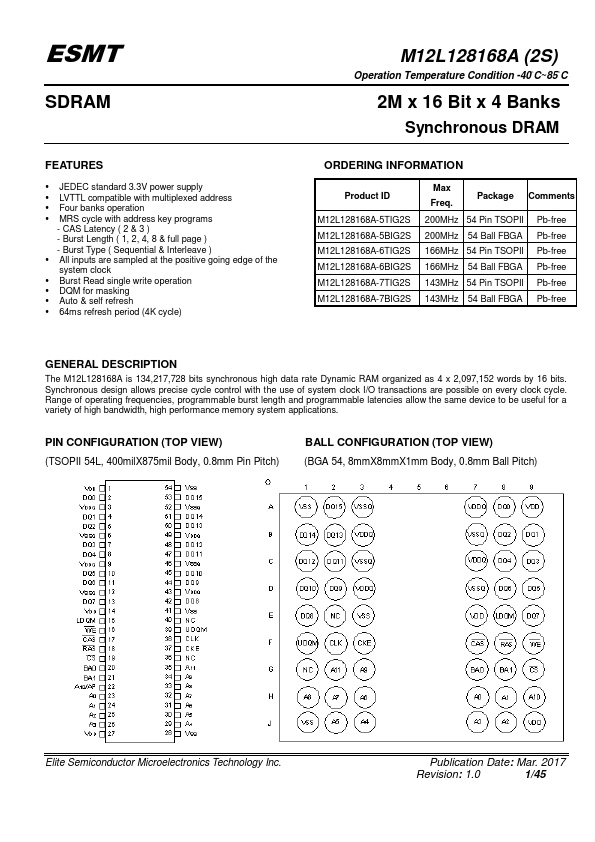

M12L128168A-7BIG2S
M12L128168A-7BIG2S is 2M x 16 Bit x 4 Banks Synchronous DRAM manufactured by Elite Semiconductor Microelectronics Technology.
- Part of the M12L128168A-5TIG2S comparator family.
- Part of the M12L128168A-5TIG2S comparator family.
ESMT
SDRAM
Features
- JEDEC standard 3.3V power supply
- LVTTL patible with multiplexed address
- Four banks operation
- MRS cycle with address key programs
- CAS Latency ( 2 & 3 )
- Burst Length ( 1, 2, 4, 8 & full page )
- Burst Type ( Sequential & Interleave )
- All inputs are sampled at the positive going edge of the system clock
- Burst Read single write operation
- DQM for masking
- Auto & self refresh
- 64ms refresh period (4K cycle)
M12L128168A (2S)
Operation Temperature Condition -40°C~85°C
2M x 16 Bit x 4 Banks
Synchronous DRAM
ORDERING INFORMATION
Product ID
M12L128168A-5TIG2S M12L128168A-5BIG2S M12L128168A-6TIG2S M12L128168A-6BIG2S M12L128168A-7TIG2S M12L128168A-7BIG2S
Max...
