FDN352AP - 30V P-Channel MOSFET

General Description

These devices are well suited for low voltage and battery powered applications where low in-line power loss is needed in a very small outline surface mount package.

Key Features

1.3 A,.
30V.
1.1 A,.
30V RDS(ON) = 180 mΩ @ VGS =.
10V RDS(ON) = 300 mΩ @ VGS =.
4.5V.
High performance trench technology for extremely low RDS(ON).
High power version of industry Standard SOT-23 package. Identical pin-out to SOT-23 with 30% higher power handling capability.

📥 Download Datasheet

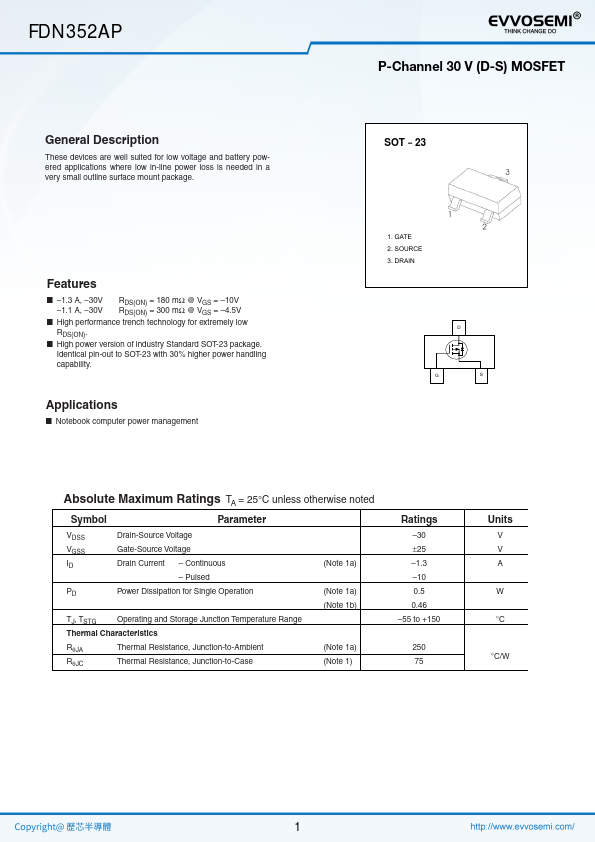

FDN352AP 30v p-channel mosfet by EVVOSEMI - Datasheet Preview

Datasheet Details

Part number	FDN352AP
Manufacturer	EVVOSEMI
File Size	660.58 KB
Description	30V P-Channel MOSFET
Datasheet	FDN352AP Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
FDN352AP	P-Channel MOSFET	Fairchild Semiconductor
FDN352AP	P-Channel MOSFET	ON Semiconductor
FDN352AP	-30V P-ChanneI MOSFET	UMW
FDN352AP	P-Channel MOSFET	Kexin
FDN352AP-NL	30V P-Channel MOSFET	VBsemi

Other Datasheets by EVVOSEMI

Part Number	Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

FDN352AP General Description These devices are well suited for low voltage and battery powered applications where low in-line power loss is needed in a very small outline surface mount package. Features ■ –1.3 A, –30V –1.1 A, –30V RDS(ON) = 180 mΩ @ VGS = –10V RDS(ON) = 300 mΩ @ VGS = –4.5V ■ High performance trench technology for extremely low RDS(ON). ■ High power version of industry Standard SOT-23 package. Identical pin-out to SOT-23 with 30% higher power handling capability. Applications ■ Notebook computer power management P-Channel 30 V (D-S) MOSFET SOT–23 1. GATE 2. SOURCE 3.
