FDN352AP-NL - 30V P-Channel MOSFET

Key Features

  • Trench Power MOSFET.
  • 100 % Rg Tested.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FDN352AP P-Channel MOSFET Fairchild Semiconductor
FDN352AP P-Channel MOSFET ON Semiconductor
FDN352AP -30V P-ChanneI MOSFET UMW
FDN352AP P-Channel MOSFET Kexin
FDN352AP 30V P-Channel MOSFET EVVOSEMI

Other Datasheets by VBsemi

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

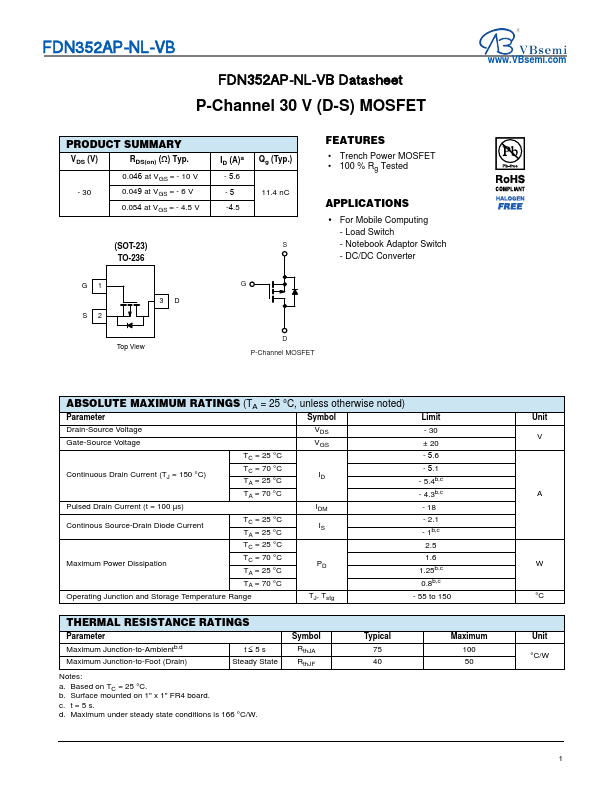

FDN352AP-NL-VB FDN352AP-NL-VB Datasheet P-Channel 30 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () Typ. 0.046 at VGS = - 10 V - 30 0.049 at VGS = - 6 V 0.054 at VGS = - 4.5 V ID (A)a - 5.6 -5 -4.5 Qg (Typ.) 11.4 nC (SOT-23) S TO-236 FEATURES • Trench Power MOSFET • 100 % Rg Tested APPLICATIONS • For Mobile Computing - Load Switch - Notebook Adaptor Switch - DC/DC Converter G1 S2 3D Top View G D P-Channel MOSFET www.VBsemi.com ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) VDS VGS TC = 25 °C TC = 70 °C TA = 25 °C ID TA = 70 °C - 30 ± 20 - 5.6 - 5.1 - 5.4b,c - 4.
