2SC2881 - NPN Silicon Transistor

Key Features

  • High voltage:VCEO=120V.
  • High transition frequency;fT=120MHz.
  • PC=500mW.
  • Complements the 2SA1201. Pb Lead-free 2SC2881.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SC2881 Silicon NPN TRANSISTOR Toshiba Semiconductor
2SC2881 Silicon NPN transistor BLUE ROCKET ELECTRONICS
2SC2881 NPN Transistor HOTTECH
2SC2881 NPN SILICON TRANSISTOR UTC
2SC2881 Transistor Kexin

Other Datasheets by Galaxy Microelectronics

Part Number Description
2SC2883 NPN Silicon Transistor
2SC2884 NPN Silicon Epitaxial Planar Transistor
2SC2812 Silicon Epitaxial Planar Transistor
2SC2859 Silicon Transistor
2SC2873 Silicon NPN Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

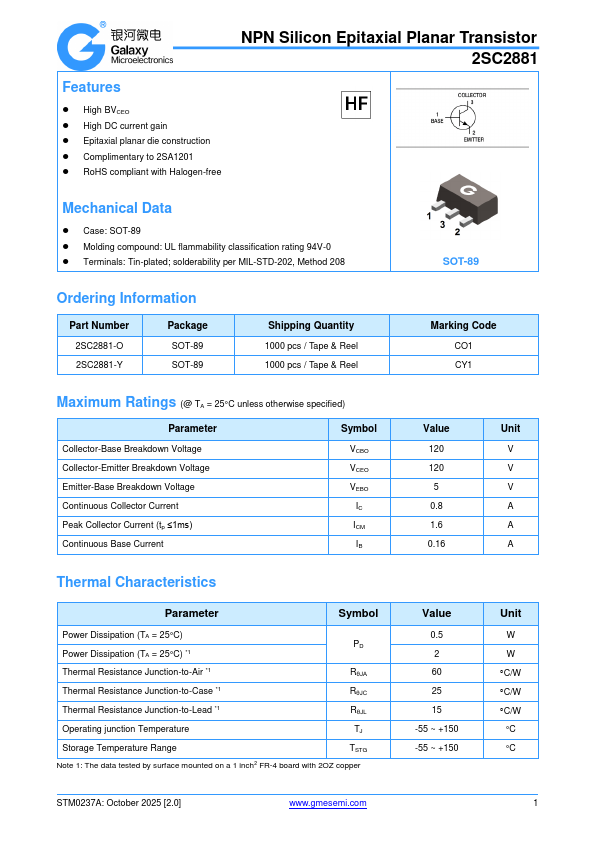

Production specification NPN Silicon Epitaxial Planar Transistor FEATURES  High voltage:VCEO=120V  High transition frequency;fT=120MHz.  PC=500mW.  Complements the 2SA1201. Pb Lead-free 2SC2881 APPLICATIONS  Power and voltage amplifier application. ORDERING INFORMATION Type No. Marking 2SC2881 CO1/CY1 SOT-89 Package Code SOT-89 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO VCEO VEBO IC IB PC Tj,Tstg Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Base current Collector Dissipation Junction and Storage Temperature 120 120 5 0.8 0.16 500 -55 to +150 Units V V V A A mW ℃ E026 Rev.A www.gmesemi.
