2SD2150 - Low Frequency Transistor

Key Features

  • z Low VCE(sat) :VCE(sat) =0.2V(Typ. ) (IC/IB=2A/0.1A). z Excellent current gain characteristics. z Complements the 2SB1424. Pb Lead-free 2SD2150 Structure Epitaxial planar type NPN silicon transistor.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SD2150 Transistor Rohm
2SD2150 NPN Transistor HOTTECH
2SD2150 NPN Transistor Jiangsu Changjiang Electronics
2SD2150 NPN Transistor Weitron Technology
2SD2150 Low Frequency Transistor Guangdong Kexin Industrial

Other Datasheets by Galaxy Microelectronics

Part Number Description
2SD2114 Silicon Epitaxial Planar Transistor
2SD2118 Low Power Transistor
2SD2137A Power Transistors
2SD2142 Silicon NPN Transistor
2SD2061 Power Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

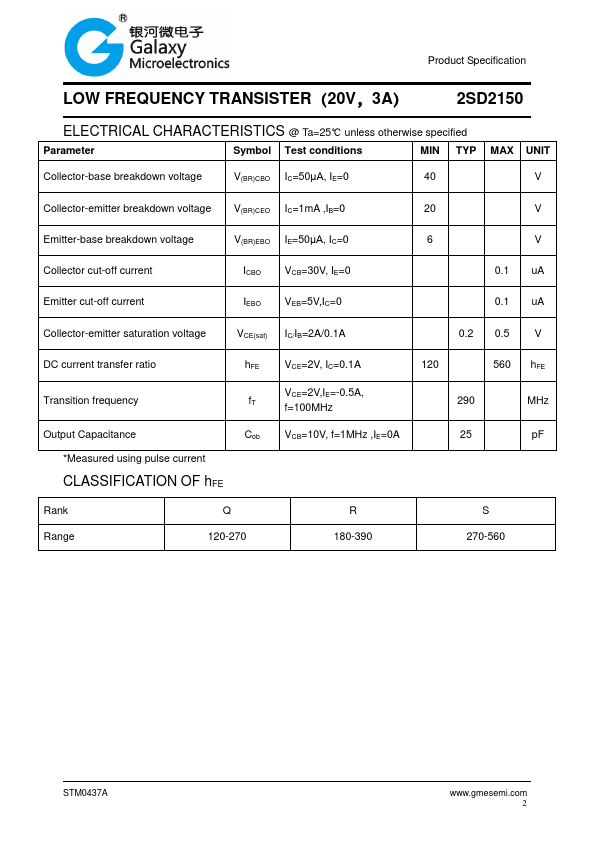

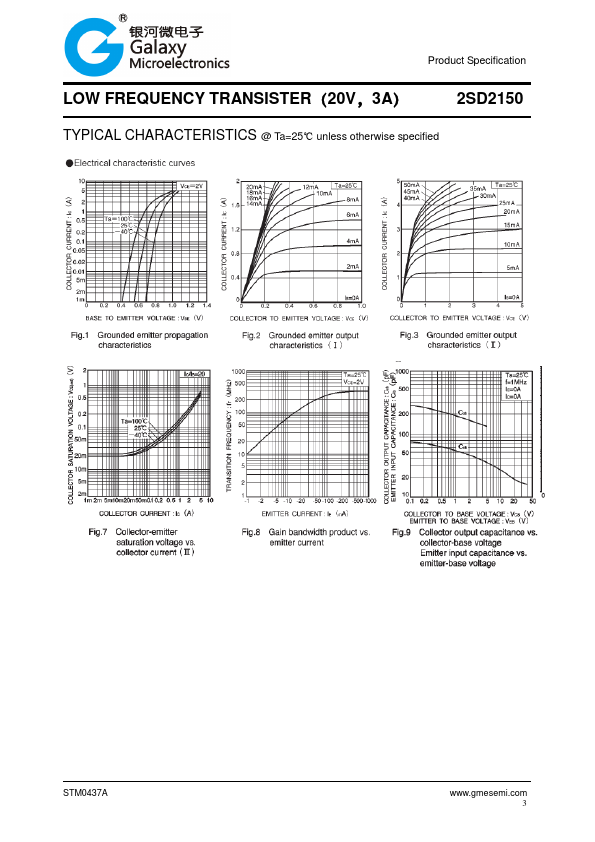

Production specification LOW FREQUENCY TRANSISTER（20V，3A） FEATURES z Low VCE(sat) :VCE(sat) =0.2V(Typ.) (IC/IB=2A/0.1A). z Excellent current gain characteristics. z Complements the 2SB1424. Pb Lead-free 2SD2150 Structure Epitaxial planar type NPN silicon transistor. ORDERING INFORMATION Type No. Marking 2SD2150 CFR SOT-89 Package Code SOT-89 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value Unit VCBO VCEO VEBO IC PC Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Collector power dissipation 40 V 20 V 6V 3 A(DC) 5 A(Pulse)*1 0.5 W Tj Junction Temperature 150 ℃ Tstg Storage Temperature *1 Single pulse Pw=10ms -55 to +150 ℃ E031 Rev.A www.gmicroelec.
