CXT5551 - NPN Silicon Epitaxial Planar Transistor

Datasheet Summary

Features

  • z Switching and amplification in high voltage. z Low current(max. 600mA) z High voltage (max. 180V) Pb Lead-free Production specification CXT5551.

📥 Download Datasheet

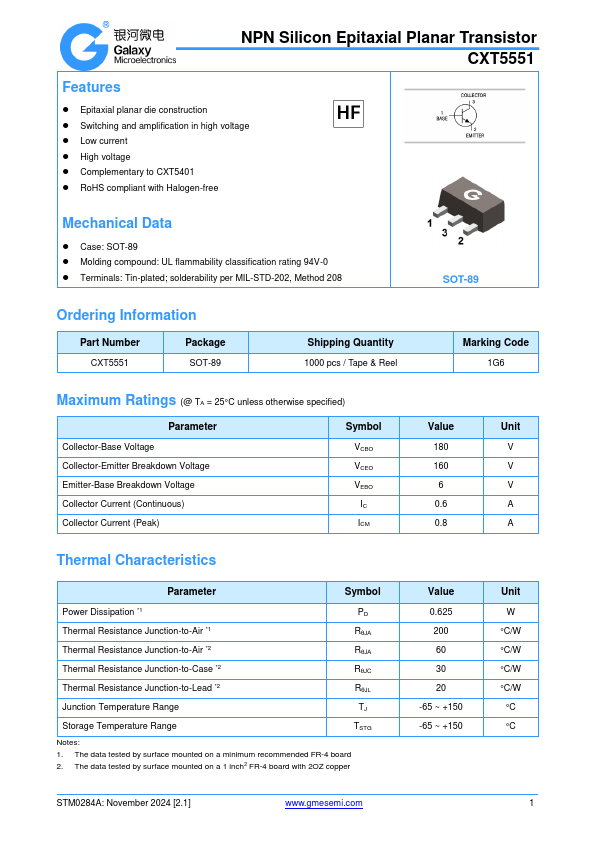

Datasheet preview – CXT5551

Datasheet Details

Part number CXT5551
Manufacturer GME
File Size 183.48 KB
Description NPN Silicon Epitaxial Planar Transistor
Datasheet download datasheet CXT5551 Datasheet

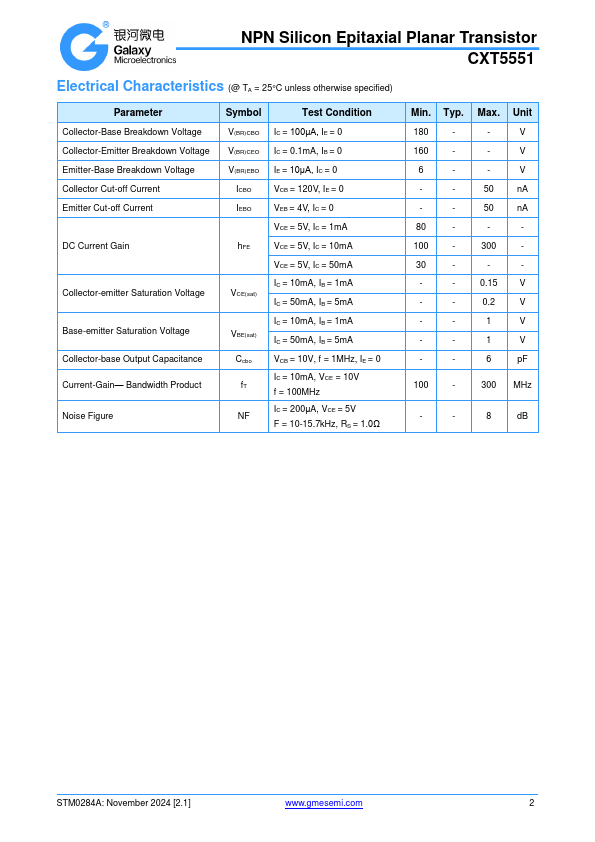

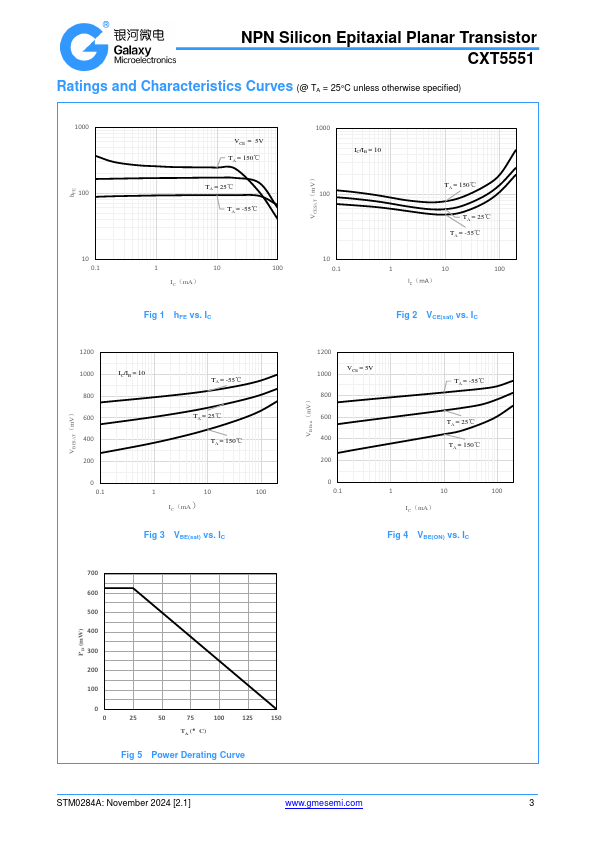

Additional preview pages of the CXT5551 datasheet.

📁 Similar Datasheet

  • CXT5551 - SURFACE MOUNT NPN SILICON TRANSISTORS (Central Semiconductor Corp)
  • CXT5551 - NPN Plastic-Encapsulate Transistors (HOTTECH)
  • CXT5551 - Surface Mount NPN Silicon Transistor (Kexin)
  • CXT5551 - TRANSISTOR (TY Semiconductor)
  • CXT5551E - SURFACE MOUNT NPN SILICON TRANSISTOR (Central Semiconductor)
  • CXT5551HC - SURFACE MOUNT NPN SILICON TRANSISTOR (Central Semiconductor)
  • CXT5401 - PNP Transistor (Central Semiconductor Corp)
  • CXT5401 - PNP Plastic-Encapsulate Transistors (MCC)
  • CXT5401 - Surface Mount PNP Silicon Transistor (Kexin)
  • CXT5401E - SURFACE MOUNT PNP SILICON TRANSISTOR (Central Semiconductor)
Other Datasheets by GME
  • CXT5401 - Surface Mount PNP Silicon Transistor

Full PDF Text Transcription

Click to expand full text
NPN Silicon Epitaxial Planar Transistor FEATURES z Switching and amplification in high voltage. z Low current(max. 600mA) z High voltage (max. 180V) Pb Lead-free Production specification CXT5551 APPLICATIONS z High voltage amplifier application. ORDERING INFORMATION Type No. Marking CXT5551 1G6 SOT-89 Package Code SOT-89 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO VCEO VEBO IC PC RθJA Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Collector Dissipation Thermal resistance 180 160 6 600 0.625 250 Tj,Tstg Junction and Storage Temperature -65 to +150 Units V V V mA W ℃/W ℃ E059 Rev.A www.gmicroelec.
