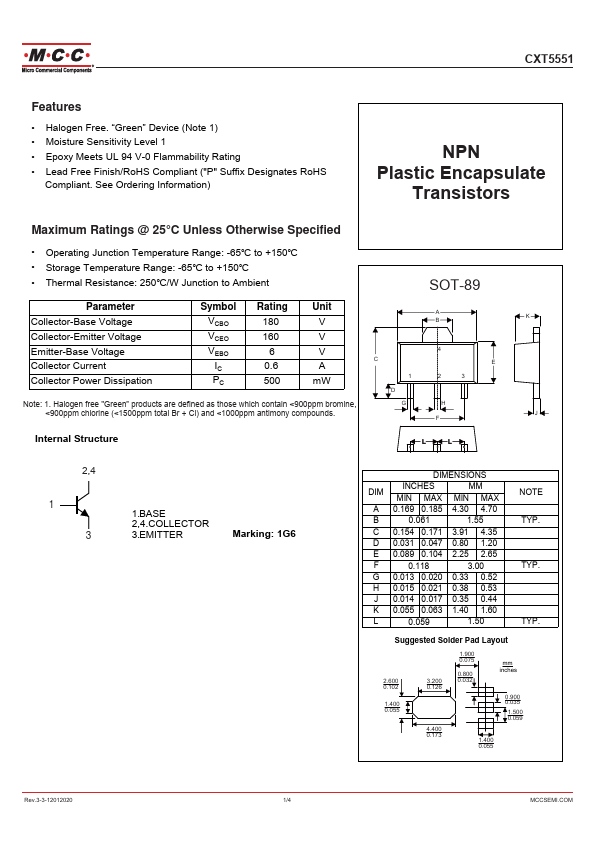

Micro Commercial Components CXT5551
NPN Plastic Encapsulate Transistors
| Part No. | CXT5551 |
|---|---|
| Datasheet | CXT5551 Download |
| Manufacturer |  Micro Commercial Components |
| Description | NPN Plastic Encapsulate Transistors |
| Buy | Stock & Price |
FEATURES
● Halogen Free. “Green” Device (Note 1)● Moisture Sensitivity Level 1
● Epoxy Meets UL 94 V-0 Flammability Rating
● Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) NPN Plastic Encapsulate Transistors
MAXIMUM RATINGS
@ 25°C Unless Otherwise Specified● Operating Junction Temperature Range: -65℃ to +150℃
● Storage Temperature Range: -65℃ to +150℃
● Thermal Resistance: 250℃/W Junction to Ambient SOT-89 Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Symbol VCBO VCEO VEBO IC PC Rating 180 160 6 0.6 500 Unit V V V A mW A B K 4 C E 1 2 3 D Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, G H <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. J F Internal Structure L L 2,4 1 3 1.BASE 2,4.COLLECTOR 3.EMITTER Marking: 1G6 DIMENSIONS DIM INCHES MIN MAX MM MIN MAX A 0.169 0.185 4.30 4.70 B 0.061 1...
