CXT5551 Datasheet | Yangjie Electronic

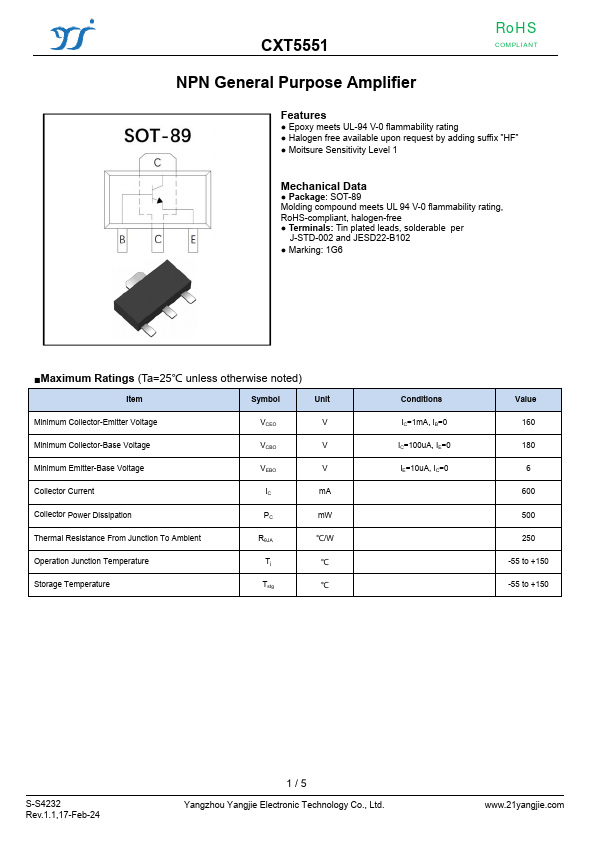

RoHS PLIANT NPN General Purpose Amplifier Features - Epoxy meets UL-94 V-0 flammability rating - Halogen free available upon request by adding suffix ”HF” - Moitsure Sensitivity Level 1 Mechanical Data - Package: SOT-89 Molding pound meets UL 94 V-0 flammability rating, RoHS-pliant, halogen-free - Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 - Marking: 1G6 - Maximum Ratings (Ta=25℃ unless otherwise noted) Item Symbol Unit Minimum Collector-Emitter Voltage VCEO Minimum Collector-Base Voltage VCBO Minimum Emitter-Base Voltage Collector Current Collector Power Dissipation VEBO IC PC V mA mW Thermal Resistance From Junction To...
