Full PDF Text Transcription for 2SD1220 (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
2SD1220. For precise diagrams, and layout, please refer to the original PDF.

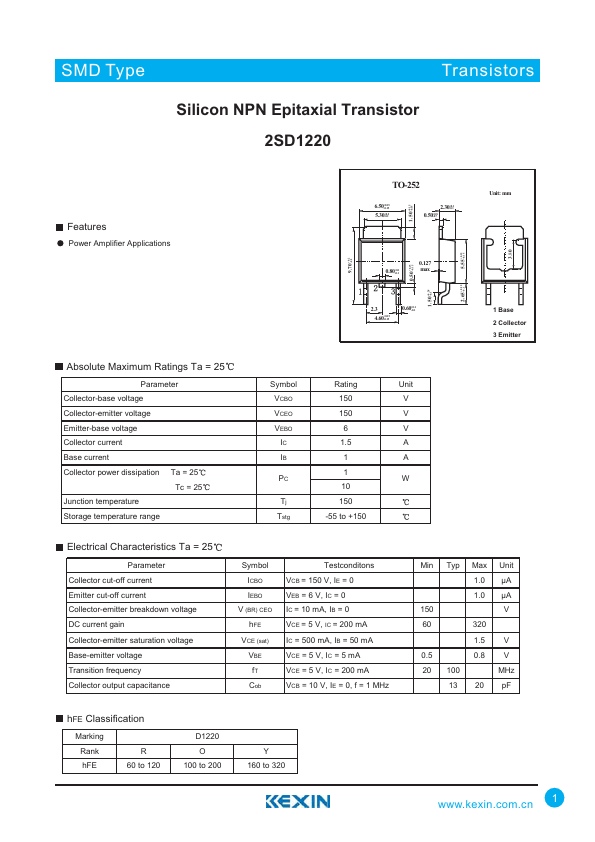

SMD Type Transistors Silicon NPN Epitaxial Transistor 2SD1220 Features Power Amplifier Applications + 9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.5...
View more extracted text
+ 9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm + 1.50 0.15 -0.15 + 5.55 0.15 -0.15 0.80+0.1 -0.1 0.127 max 3.80 + 0.25 2 .6 5 -0.1 + 0.15 0 .5 0 -0.15 + 0.28 1 .5 0 -0.1 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 1 Base 2 Collector 3 Emitter Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Ta = 25 Tc = 25 Junction temperature Storage temperature range Symbol Rating Unit VCBO 150 V VCEO 150 V VEBO 6 V IC 1.
2SD1220 Datasheet
