AO4435 Datasheet P-channel MOSFET

Manufacturer: Kexin Semiconductor

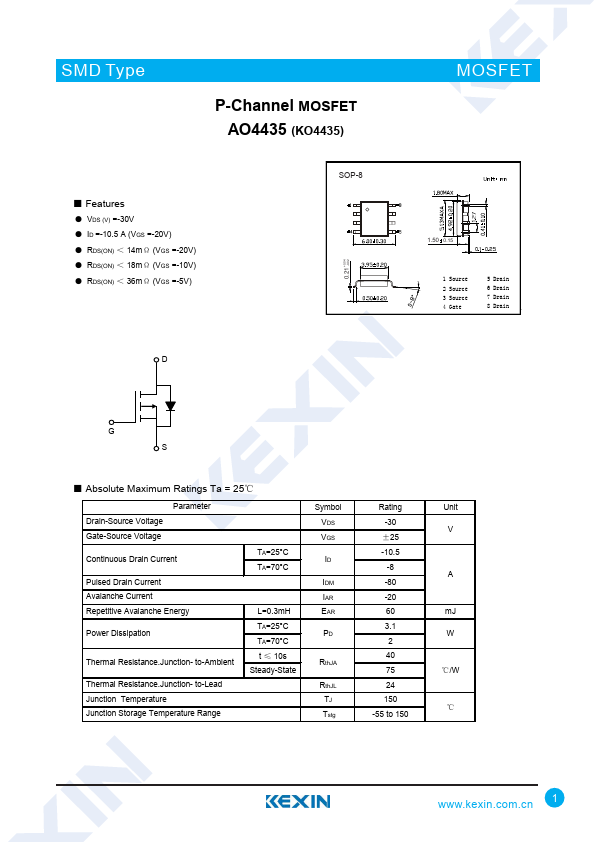

Overview: SMD Type P-Channel MOSFET AO4435 (KO4435) ■.

Key Features

  • s.
  • VDS (V) =-30V.
  • ID =-10.5 A (VGS =-20V).
  • RDS(ON) ＜ 14mΩ (VGS =-20V).
  • RDS(ON) ＜ 18mΩ (VGS =-10V).
  • RDS(ON) ＜ 36mΩ (VGS =-5V) +0.04 0.21 -0.02 SOP-8 D MOSFET 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current Repetitive Avalanche Energy Power Dissipation Thermal Resistance. Jun.
